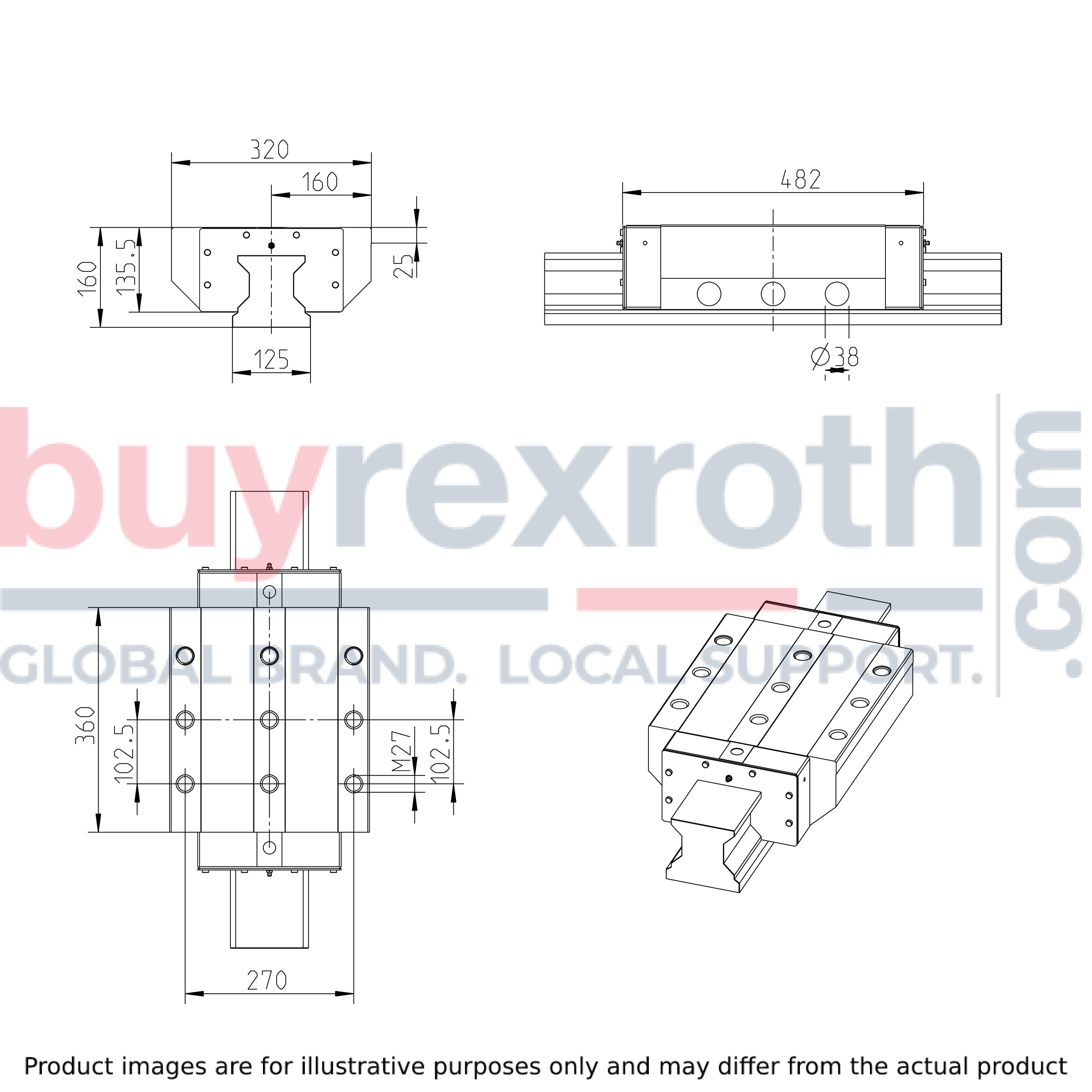

| Runner block or guide rail | Runner block |
| Linear guide type | Roller rail system |
| Nominal size | 125 |
| Format | FLS - flanged, long, standard height |
| Ball chain | Without roller chain |
| Material (profiled rail systems) | Hard chrome plated |
| Preload force | 98400 |
| Preload class | C3 – High preload |
| Accuracy class | H - Highly accurate |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Width of runner block | 320 |
| Length of runner block | 476 |
| Height of runner block | 135.5 |
| Height of runner block with guide rail | 160 |
| Lubrication | With preservation and without initial lubrication |
| Dynamic load capacity C | 1020000 |
| Footnote dynamic load capacity C | Determination of the dynamic load capacities and load moments is based on a 100,000 m travel as per DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.23. |
| Dynamic torsional moment load capacity Mt footnote | Determination of the dynamic load capacities and load moments is based on a 100,000 m travel as per DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.23. |
| Static longitudinal moment load capacity ML0 | 109150 |
| Static torsional moment load capacity Mt0 | 139820 |
| Max. acceleration amax | 150 |
| Note: Max. acceleration amax | Requirement: There must be preload, even during operation under load. |
| Maximum permissible linear speed vmax | 2 |
| Dynamic torsional moment load capacity Mt | 57740 |
| Dynamic longitudinal moment load capacity ML | 45080 |
| Dynamic longitudinal moment load capacity ML footnote | Determination of the dynamic load capacities and load moments is based on a 100,000 m travel as per DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.23. |
| Seal | SS – Standard seal |
| Static load rating C0 | 1941900 |
| Permissible ambient temperature | -10 °C ... +80 °C |
| Footnote permissible ambient temperature (min ... max) | 100 °C admissible for short time. For operation at lower minus temperatures, please consult us. |
| Friction coefficient μ | 0,0004 ... 0,001 |
| Footnote friction coefficient μ | Without friction of seal |
| Footnote friction force FR | Guideline value for frictional drags of the complete, sealed and lubricated roller runner blocks. The friction is approx. 50% higher immediately after lubrication. |
| Pitch T guide rail | 120 |
| Friction force | 600 |
| Friction coefficient μ min. | 0.0004 |
| Friction coefficient μ max. | 0.001 |
| Productgroup ID | 17 |
| Permissible ambient temperature (max) | +80 |
| Permissible ambient temperature (min) | -10 |
| Weight | 89.8 |
| Size A (profiled rail systems) | 320 |
| Size A1 (profiled rail systems) | 160 |
| Size A2 (profiled rail systems) | 125 |
| Size A3 (profiled rail systems) | 97.5 |
| Size B (profiled rail systems) | 476 |
| Size B1 (profiled rail systems) | 360 |
| Size B2 (profiled rail systems) | 482 |
| Size E1 (profiled rail systems) | 270 |
| Size E2 (profiled rail systems) | 205 |
| Size E8 (profiled rail systems) | 80 |
| Size E9 (profiled rail systems) | 12 |
| Size H (profiled rail system) | 160 |
| Size H1 (profiled rail systems) | 135.5 |
| Size H2 with cover strip (profiled rail systems) | 115.3 |
| Size K1 (profiled rail systems) | 102.5 |
| Size K2 (profiled rail systems) | 102.5 |
| Size B3 | 491.5 |
| Size B4 | 150 |
| Size N1 (profiled rail systems) | 45 |
| Size N2 (profiled rail systems) | 29 |
| Size N5 (profiled rail systems) | 29 |
| Size N6 (profiled rail systems) | 74.5 |
| Size N6 tolerance (profiled rail systems) | ±0.5 |
| Size N6 with tolerance (profiled rail systems) | 74,5 mm ±0,5 |
| Size N7 (profiled rail systems) | 92 |
| Size S2 (profiled rail systems) | M27 |
| Size diameter S5 (profiled rail systems) | 33 |
| Footnote of size T (profiled rail systems) | T = Rail separation of the Roller Guide Rail |
| Size T1 min (profiled rail systems) | 40 |
| Size V1 | 25 |
