ROLLER RUNNER BLOCK CARBON STEEL RWD-065-FNS-C3-P-2

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

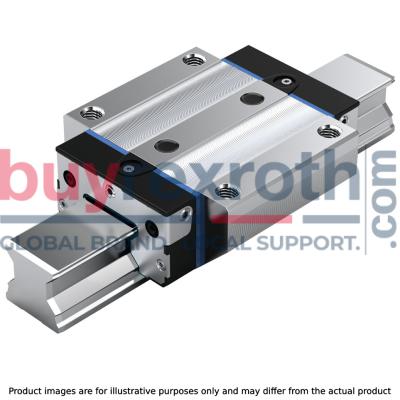

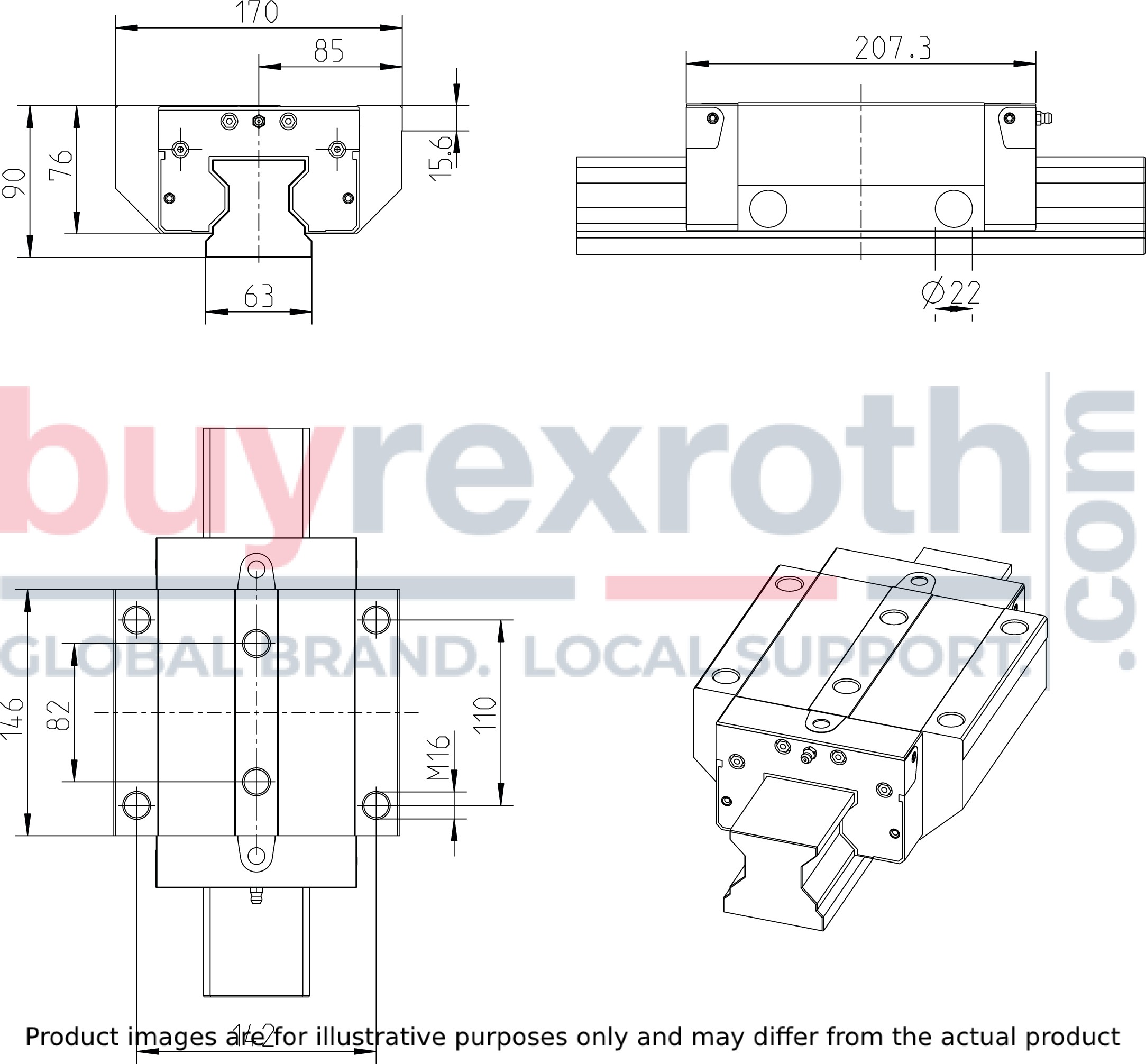

The Bosch Rexroth R.RUNNER BLOCK CS RWD-065-FNS-C3-P-2 (R18516322X) is a high-precision roller runner block designed for linear motion applications requiring exceptional accuracy and rigidity. This product features a size 65 FNS format, which includes a width flange, normal length, and standard height. The runner block body is constructed from unalloyed steel CS, ensuring durability and long-term performance. With a preload class of C3, this runner block offers high preload capabilities, while its P class precision denotes its suitability for tasks demanding exacting precision. The RWD-065-FNS-C3-P-2 does not come with an initial lubrication or attachment elements on either front reference edge, allowing for customization based on specific application needs. Its straight lube connection is loosely attached for convenience during maintenance. The overall length of the runner block is optimized to provide maximum stability and torque load capacity in all four main loading directions. It boasts unrestricted interchangeability with all guide rail versions and can accommodate accessories screwed down to the front. The innovative channel design ensures minimal lubrication quantities are required, contributing to smooth and quiet operation. This model also features integrated all-around sealing as standard and comes in various sizes with different preload classes ranging from C0 to C3. It supports dynamic load capacities based on a 100 km travel as per DIN ISO standards and allows for easy mounting of attachments both above and below the runner block body. The Bosch Rexroth RWD-065-FNS-C3-P-2 is capable of compensating for misalignments without self-alignment and operates within a permissible ambient temperature range of -10°C to +100°C. Its design eliminates the need for special installations or environmental considerations, making it suitable for a wide array of applications that demand high precision linear guidance systems.
