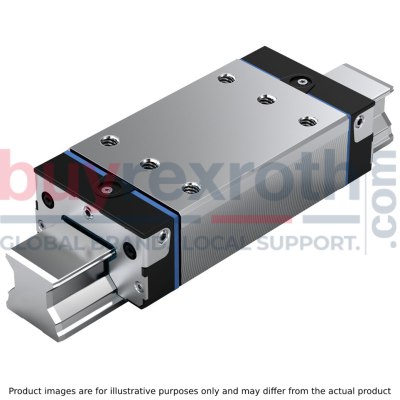

| Runner block or guide rail | Runner block |
| Linear guide type | Roller rail system |
| Nominal size | 35 |
| Format | SLS - slimline, long, standard height |
| Ball chain | Without roller chain |
| Material (profiled rail systems) | Carbon steel |
| Preload force | 5540 |
| Preload class | C2 – Average preload |
| Accuracy class | P - Precise |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Width of runner block | 70 |
| Length of runner block | 142 |
| Height of runner block | 41 |
| Height of runner block with guide rail | 48 |
| Lubrication | With preservation and without initial lubrication |
| Dynamic load capacity C | 74900 |
| Footnote dynamic load capacity C | Determination of the dynamic load capacities and load moments is based on a 100,000 m travel as per DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.23. |
| Dynamic torsional moment load capacity Mt footnote | Determination of the dynamic load capacities and load moments is based on a 100,000 m travel as per DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.23. |
| Static longitudinal moment load capacity ML0 | 2530 |
| Static torsional moment load capacity Mt0 | 3080 |
| Max. acceleration amax | 150 |
| Note: Max. acceleration amax | Prerequisite: There must be preload, even during operation under load. |
| Maximum permissible linear speed vmax | 4 |
| Dynamic torsional moment load capacity Mt | 1490 |
| Dynamic longitudinal moment load capacity ML | 1220 |
| Dynamic longitudinal moment load capacity ML footnote | Determination of the dynamic load capacities and load moments is based on a 100,000 m travel as per DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.23. |
| Seal | SS – Standard seal |
| Seal footnote | In progress |
| Static load rating C0 | 155400 |
| Permissible ambient temperature | -10 °C ... +80 °C |
| Footnote permissible ambient temperature (min ... max) | Brief peaks up to
100 °C are permitted. For even lower sub-zero temperatures, please consult
us. |
| Friction coefficient μ | 0,0004 ... 0,001 |
| Footnote friction coefficient μ | Without friction of seal |
| Footnote friction force FR | Guideline value for frictional drags of the complete, sealed and lubricated roller runner blocks. |
| Pitch T guide rail | 40 |
| Friction force | 35 |
| Friction coefficient μ min. | 0.0004 |
| Friction coefficient μ max. | 0.001 |
| Productgroup ID | 17 |
| Permissible ambient temperature (max) | +80 |
| Footnote of size T (profiled rail systems) | Dimension T = Division of the Roller Guide Rail |
| Permissible ambient temperature (min) | -10 |
| Weight | 1.84 |
| Size A (profiled rail systems) | 70 |
| Size A1 (profiled rail systems) | 35 |
| Size A2 (profiled rail systems) | 34 |
| Size A3 (profiled rail systems) | 18 |
| Size B (profiled rail systems) | 142 |
| Size B1 (profiled rail systems) | 103.6 |
| Size E1 (profiled rail systems) | 50 |
| Size E2 (profiled rail systems) | 72 |
| Size E8 (profiled rail systems) | 50.3 |
| Size E9 (profiled rail systems) | 13.1 |
| Size H (profiled rail system) | 48 |
| Size H1 (profiled rail systems) | 41 |
| Size H2 with cover strip (profiled rail systems) | 31.1 |
| Size H2 with cover strip (profiled rail systems) | 30.8 |
| Size K1 (profiled rail systems) | 22.55 |
| Size K2 (profiled rail systems) | 24.4 |
| Size N3 (profiled rail systems) | 12 |
| Size N5 (profiled rail systems) | 7 |
| Size N6 (profiled rail systems) | 19.4 |
| Size N6 tolerance (profiled rail systems) | ±0.5 |
| Size N6 with tolerance (profiled rail systems) | 19,4 mm ±0,5 |
| Size S2 (profiled rail systems) | M8 |
| Size diameter S5 (profiled rail systems) | 9 |
| Size S9 thread diameter (profiled rail systems) | M3 |
| Size T1 min (profiled rail systems) | 16 |
| Size V1 | 8 |
