ROLLER RUNNER BLOCK CARBON STEEL RWD-035-SNH-C3-P-2

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

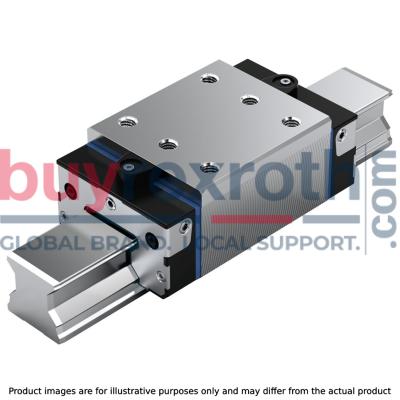

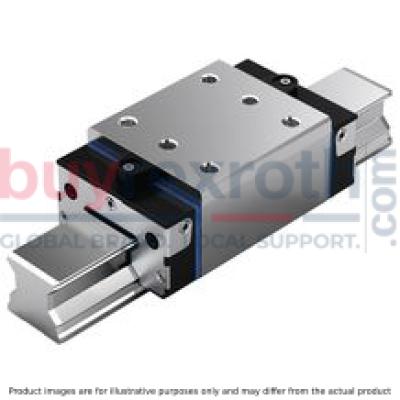

The Bosch Rexroth R.RUNNER BLOCK CS RWD-035-SNH-C3-P-2 (R18213322X) is a high-precision roller runner block designed for linear motion applications that demand exacting standards in terms of movement and rigidity. This component, part of the RSHP series, is characterized by its slimline width, normal length, and high height format SNH. It is constructed from unalloyed steel CS for durability and has been engineered to deliver precision with an accuracy class P and a high preload class C, ensuring minimal play and maximum rigidity. The roller runner block boasts an overall length of . mm and can accommodate high torque loads equally well in all four principal loading directions. Its design allows for easy maintenance with lube nipples accessible from all sides. The innovative channel design minimizes lubrication requirements while ensuring smooth operation due to the optimized return and guideways for the rollers. Attachments can be added to the roller runner block from both above and below, providing flexibility in assembly. This model does not come with an initial lubrication or attachment elements at the left or right front reference edges but features straightforward lube connections that are loosely attached. It offers unrestricted interchangeability as it can be combined with any guide rail versions within its series. The integrated all-around sealing comes standard, offering protection against contaminants. The RWD-035-SNH-C3-P-2 runner block is also notable for its ability to self-align to compensate for misalignments without a ball or roller chain, contributing to a friction coefficient range of , ... , . Its static load rating C0 and dynamic load capacity C are based on DIN ISO standards with travel distances considered during the determination process. Overall, this Bosch Rexroth runner block represents a versatile solution for various linear motion systems where precision and adaptability are critical factors.
