ROLLER GUIDE RAIL CARBON STEEL RSA-065-SNS-S-MA-AK

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

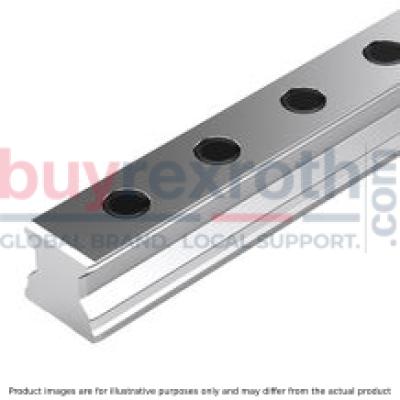

The Bosch Rexroth R.GUIDE RAIL CS (R180565132) is a high-precision roller guide rail designed for linear motion applications requiring super precision and rigidity. The guide rail is part of the SNS series, which features a slimline width, standard height, and normal length format. It is constructed from carbon steel (CS) to ensure durability and stability under load. This model is characterized by its two-piece rail system with hardened raceways that are smoothened on all sides, delivering maximum rigidity in all load directions and an exceptionally high torque load capacity. The R.GUIDE RAIL CS is designed for mounting from above using fastener MA (bolting from above), making installation straightforward and secure. It includes plastic caps (cover AK) to protect the mounting holes, maintaining the integrity of the rail system. The product falls into the super precision accuracy class (SP), signifying its capability for applications demanding high levels of accuracy. With a permissible ambient temperature range of -10°C to +80°C, it can operate in various environmental conditions; however, consultation is recommended for operation at temperatures below this range. The maximum length of the guide rail (Lmax) can be tailored to specific requirements within the product's specifications. The mass of this guide rail is 0.57 kg/m, with a pitch T guide rail size N profiled at 60 mm. For optimal performance and compatibility with runner blocks or other components within a linear motion system, selection should adhere to DIN standards. In summary, the Bosch Rexroth R.GUIDE RAIL CS offers exceptional precision and rigidity for demanding linear motion applications. Its design ensures smooth operation and high torque capacity while providing flexibility in installation and maintenance through its protective cover strip feature.
