BALL GUIDE RAIL CARBON STEEL KSA-025-BNS-N-MB-00

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

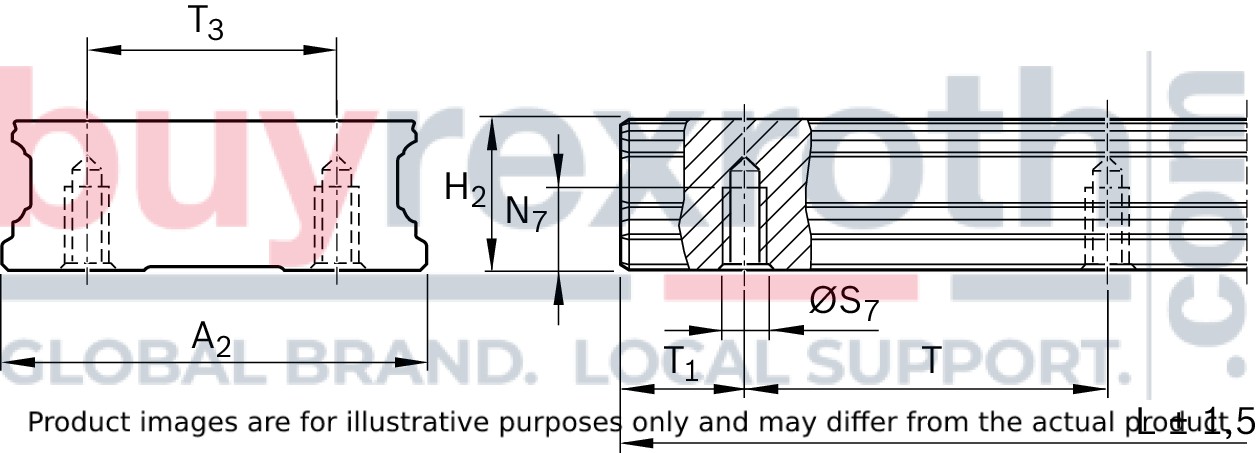

The Bosch Rexroth B.GUIDE RAIL CS (R167720432) is a high-precision ball guide rail designed to offer maximum rigidity and torque load capacity in various applications. This particular model, KSA-025-BNS-N-MB-00, is part of the BNS series and is characterized by its wide width, normal length, and standard height. The guide rail itself is constructed from carbon steel (CS), ensuring durability and robust performance. The B.GUIDE RAIL CS features a two-piece design that allows for larger side loads compared to single-row series rails. It includes a double-row mounting hole configuration enabling secure mounting from below (fastener MB). The absence of a cover strip means there's no extra space required at the rail ends, which can be advantageous in tight installation spaces. This model's accuracy class is standard, signifying reliable precision for general applications. The guide rail can withstand ambient temperatures ranging from -20°C to +80°C for short periods; however, for operations at negative temperatures or beyond this range, consultation with Bosch Rexroth is recommended. The R167720432 has been designed with optimal sealing provided by end seals, enhancing its longevity and performance in various environments. The unit's mass is 0.6 kg/m, making it a solid yet manageable component in terms of weight. With a maximum permissible length of 2 meters for the guide rails, this product offers flexibility in terms of design and application scope. When selecting the appropriate length for specific requirements, Bosch Rexroth provides a recommended formula: L = nB * T + 60 mm, where 'nB' represents the number of holes and 'T' the pitch. Overall, the Bosch Rexroth B.GUIDE RAIL CS offers an efficient solution for linear motion guidance systems where high rigidity and load capacity are essential. Its robust construction and thoughtful design ensure reliable operation across various industrial applications without compromising on precision.
