BALL GUIDE RAIL CARBON STEEL KSD-020-BNS-N-MA-AK

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

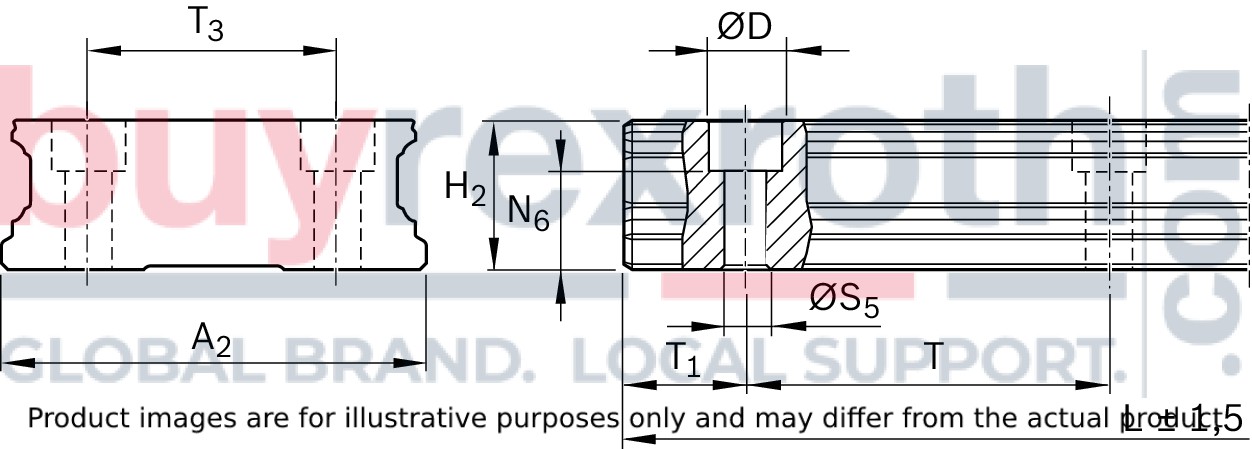

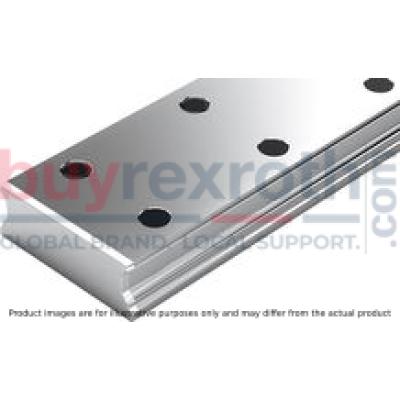

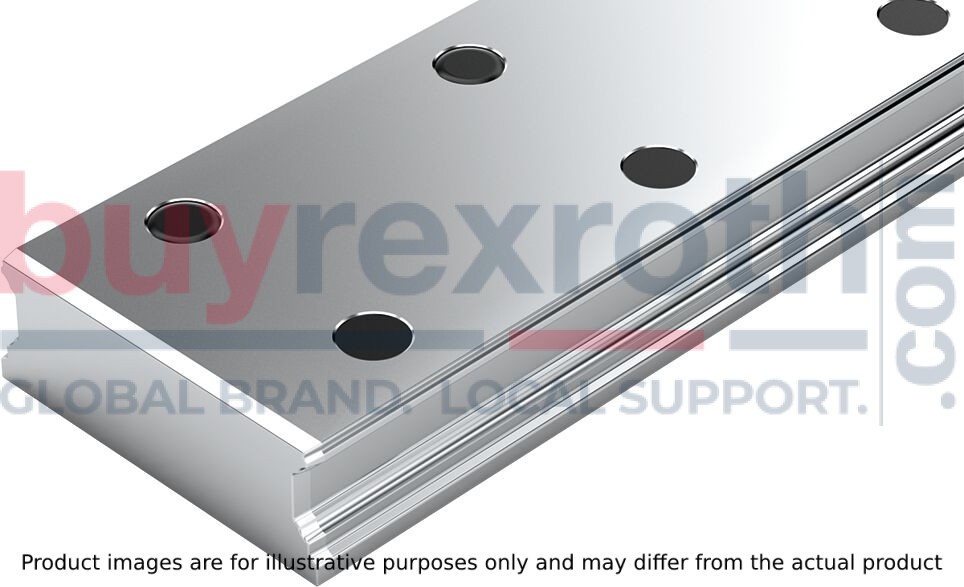

The Bosch Rexroth B.GUIDE RAIL CS (R167550431) is a high-precision ball guide rail system designed for robust performance and versatility in linear motion applications. This one-piece rail is part of the BNS series, featuring a wide format with standard width, normal length, and standard height dimensions. Constructed from carbon steel (CS), it offers maximum rigidity in all load directions and is capable of handling very high torque loads. Engineered for convenience, it includes plastic caps (cover AK) for protection and utilizes a fastener MA design that allows bolting from above for easy installation. The double-rowed guide rail ensures stability and does not require extra space at the ends of the rail, making it ideal for compact designs. With an accuracy class standard and a permissible ambient temperature range from minimum to maximum degrees Celsius (for short durations), this guide rail can be used in various environments. However, for operation at negative temperatures, consultation with Bosch Rexroth is advised. The guide rail's mass is . kg/m, which contributes to its sturdy yet efficient design. It also features a pitch T guide rail and can support a maximum length (Lmax) of m. Notably, this particular model cannot be combined with ball runner block R .. ..!, ensuring users select compatible components within the system. For mounting considerations, Bosch Rexroth provides Mounting Instructions that should be requested to ensure correct installation. Additionally, this product comes with new Ball Rail Systems that are not interchangeable with the old size ball diameters, highlighting its updated design features. Overall, the Bosch Rexroth B.GUIDE RAIL CS is an optimal solution for those seeking a reliable linear guide system that balances precision with durability. Its construction and features make it suitable for various applications where linear motion is required.
