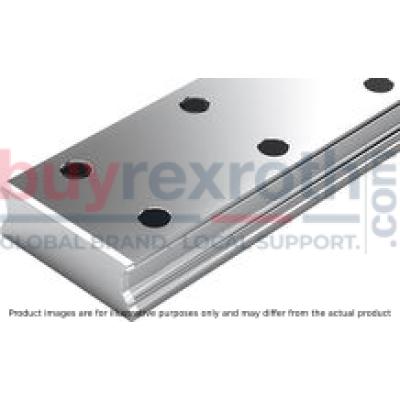

BALL GUIDE RAIL CARBON STEEL KSD-020-BNS-P-MA-AK
Manufacturer: Bosch Rexroth
Material #: R167550231
Model : B.GUIDE RAIL CS KSD-020-BNS-P-MA-AK
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth B.GUIDE RAIL CS (R167550231) is a high-precision ball guide rail, designed for robust performance in linear motion applications. This guide rail is part of the BNS series and is characterized by its one-piece carbon steel construction, ensuring maximum rigidity in all load directions and a very high torque load capacity. The size T profiled rail system offers a wide guide rail format with standard height and length dimensions.
The B.GUIDE RAIL CS features a fastener MA, which allows for bolting from above, and includes plastic caps (cover AK) to protect the mounting holes. The accuracy class precision of this model ensures smooth and accurate movement for various applications. It has been designed to accommodate double-row mounting from above without the need for extra space at the ends of the rail.
This ball guide rail can withstand permissible ambient temperatures ranging from -20°C to 80°C for short periods. For continuous operation or use in negative temperatures, consultation with Bosch Rexroth is recommended. The maximum length available for this model is denoted as Lmax Size S profiled rail system.
With a mass of 2.9 kg/m and pitch T guide rail size N profiled rail systems at 60 mm, the Bosch Rexroth B.GUIDE RAIL CS ensures durability and reliability in linear motion systems. It should be noted that this ball guide rail cannot be combined with ball runner block models starting with "R .. ..".
In summary, this Bosch Rexroth ball guide rail offers precision, high load capacity, easy installation from above with plastic mounting hole plugs, and compatibility with size T profiled rail systems within specified dimensions and temperature ranges. Users are advised to consult the Mounting Instructions for Ball Rail Systems to ensure proper installation and operation.
