BALL RUNNER BLOCK CARBON STEEL KWD-020-BNS-C1-P-1

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

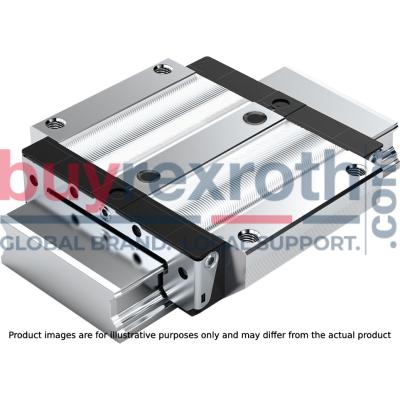

The Bosch Rexroth B.RUNNER BLOCK CS KWD-020-BNS-C1-P-1 (R16715122Y) is a high-precision ball runner block designed for linear motion applications requiring precision and reliability. This runner block is part of the BNS series, featuring a width that is wide, a normal length, and a standard height. It is constructed from unalloyed steel CS, ensuring durability and robustness for industrial use. The B.RUNNER BLOCK CS has an accuracy class P (Precision) and a preload class C (Low preload), making it suitable for applications where precise movement is critical. It comes equipped with a ball chain that facilitates smooth motion and reduces noise levels during operation. The runner block also boasts long-term lubrication capabilities, extending its maintenance intervals. With an overall length of . mm, this runner block can handle high torsional moments on rails and offers the same high load ratings in all four main loading directions. It features integrated all-around sealing to protect against contaminants and an optimized entry-zone geometry that minimizes variations in elastic deflection, contributing to maximum system rigidity. The product's design allows attachments to be mounted from both above and below the runner block, enhancing its versatility. Two additional mounting screw holes at the center increase rigidity under liftoff and side-loading conditions. Its quiet operation is complemented by very high torsional moment load capacity and resistance, making it ideal as an individual guide in various applications. For ease of installation and maintenance, the B.RUNNER BLOCK CS includes end-face fastening threads for attachments and metal-threaded lube connections on all sides. The product comes pre-lubricated from the factory for immediate use. The permissible ambient temperature range for operation extends from min ... max °C (specific figures provided by manufacturer specifications), ensuring reliable performance across diverse environments. This model's dynamic load capacity C and other specific load capacities are determined according to DIN ISO standards, emphasizing its capability to withstand demanding conditions reliably.
