BALL RUNNER BLOCK CARBON STEEL KWC-035-BNS-C1-P-2

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

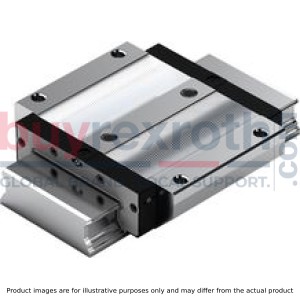

The Bosch Rexroth B.RUNNER BLOCK CS KWC-035-BNS-C1-P-2 (R167131210) is a ball runner block designed for high precision and rigidity in linear motion applications. This runner block is part of the BNS size range, featuring a wide width, normal length, and standard height. It is constructed from unalloyed steel CS to ensure durability and performance. The product has a low preload class C and boasts an accuracy class P for precision applications. This model does not include a ball chain, allowing for a simplified design that is preserved without initial lubrication. It also lacks attachment elements on both left and right front reference edges but includes angular lube nipples that are loosely attached. The overall length of the runner block is specified in the product details. The B.RUNNER BLOCK CS KWC-035-BNS-C1-P-2 is characterized by its ability to handle high torsional moments on rails, delivering the same high load ratings in all four main directions of loading. Its dynamic characteristics are excellent, contributing to a low noise level and optimal travel behavior. Additionally, it has an impressive torque load capacity. This runner block can be interchanged with guide rails of every accuracy class, making it versatile for various applications. Its optimized entry zone geometry and the high number of balls help minimize variation in elastic deflection. The product's design allows attachments to be mounted from both above and below the block, providing flexibility in system configuration. Furthermore, it features end-face fastening threads for all attachments and offers maximum system rigidity due to its preloaded O-arrangement. The inclusion of additional mounting screw holes at the center enhances rigidity under liftoff and side loading conditions. In summary, the Bosch Rexroth B.RUNNER BLOCK CS KWC-035-BNS-C1-P-2 (R167131210) is engineered for applications requiring precision movement with high torsional load capacity, offering robust performance with a wide range of accessories available for customization.
