BALL RUNNER BLOCK CARBON STEEL KWD-020-FKS-C1-N-1

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

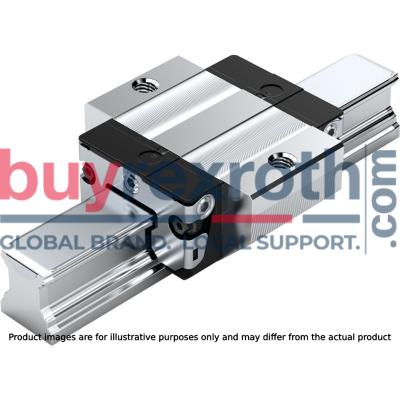

The Bosch Rexroth B.RUNNER BLOCK CS KWD-020-FKS-C1-N-1 (R166581420) is a high-precision ball runner block designed for linear guidance and movement. This model is part of the FKS series, which features a width flange, short length, and standard height configuration. The runner block body is crafted from unalloyed steel CS, ensuring durability and robustness in various applications. With a low preload class C and standard accuracy class N, this ball runner block offers consistent performance without the inclusion of a ball chain. It comes with initial lubrication and preservation to reduce maintenance needs over time. Additionally, the roller bearing grease Dynalub enhances the longevity of the component. The B.RUNNER BLOCK CS KWD-020-FKS-C1-N-1 boasts an overall length that allows for interchangeability with guide rails across all accuracy levels. Its design significantly reduces frictional oscillations and maintains a low friction force level under external loads. The unit can be easily customized with attachments mounted from above or below, providing flexibility in different setups. This model is engineered to deliver maximum precision due to its patented entry zone that increases travel accuracy by up to six times. It supports long-term lubrication for several years and features lube fittings with metal threads on all sides for easy maintenance access. The integrated all-around sealing ensures protection against contaminants. High torque load capacity, various preload classes, and high rigidity in all load directions make it suitable for applications where only one runner block per rail is required. It can withstand high load ratings in four main directions of loading, contributing to maximum system rigidity due to its preloaded O-arrangement. An optional integrated, inductive, and wear-free measuring system can be added for precise positioning tasks. The product's excellent dynamic characteristics make it compatible with all SN/SNO ball guide rails from Bosch Rexroth's offering.
