BALL RUNNER BLOCK CARBON STEEL KWD-025-FKS-C1-H-1

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

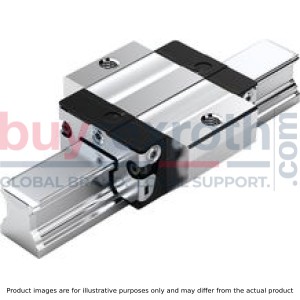

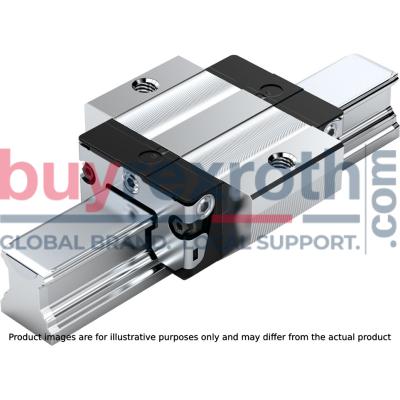

The Bosch Rexroth B.RUNNER BLOCK CS KWD-025-FKS-C1-H-1 (R16652132Z) is a high-precision ball runner block designed for linear motion applications where space is limited in the longitudinal direction. This runner block features a size 25 flanged, short, and standard height format FKS body made from unalloyed steel CS, ensuring durability and robustness. It comes with a low preload class C and boasts high accuracy class H, making it suitable for applications requiring maximum precision. The B.RUNNER BLOCK CS is notable for its reduced frictional oscillations and low friction force levels, particularly under external loads. It allows attachments to be mounted from above or below the block, adding to its versatility. The patented entry zone of this runner block significantly increases travel accuracy by up to six times compared to standard blocks. This model does not include a ball chain but comes with initial lubrication and preservation for long-term performance. The roller bearing grease Dynalub is used for maintenance purposes. The runner block's design includes an all-around sealing system that offers protection against contaminants while maintaining high torque load capacity across various preload classes. With its ability to provide high rigidity in all loading directions, the B.RUNNER BLOCK CS can be used with just one runner block per rail without compromising on performance. It supports the same high load ratings in all four main directions of loading and offers maximum system rigidity through a preloaded O-arrangement. An optional feature includes an integrated, inductive, wear-free measuring system that enhances the dynamic characteristics of the device. This Bosch Rexroth ball runner block is compatible with all SN/SNO ball guide rails and is capable of accommodating different environmental temperature ranges as specified in its technical documentation. In summary, the Bosch Rexroth B.RUNNER BLOCK CS KWD-025-FKS-C1-H-1 (R16652132Z) stands out for its precision engineering, adaptability for restricted spaces, and capability to maintain high performance in demanding linear motion applications.
