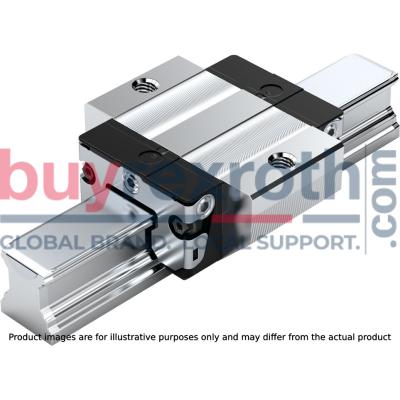

| Material (profiled rail systems) | Carbon steel |
| Maximum permissible torsional moment Mt max | 15 |
| Size N6 with tolerance (profiled rail systems) | 10,3 mm ±0,5 |
| Height of runner block | 19.9 |
| Footnote permissible ambient temperature (min ... max) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Footnote dynamic load capacity C | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
| Size S5 (profiled rail system) | 4.5 |
| Max. acceleration amax | 500 |
| Footnote friction coefficient μ | Without friction of seal |
| Permissible ambient temperature | -10 °C ... +80 °C |
| Maximum dynamic load Fmax | 1500 |
| Size A (profiled rail systems) | 47 |
| Size N6 tolerance (profiled rail systems) | ±0.5 |
| Size A3 (profiled rail systems) | 16 |
| Format | FKS - flange, short, standard height |
| Size A2 (profiled rail systems) | 15 |
| Self-aligning for compensation of misalignments | With self-alignment |
| Maximum permissible linear speed vmax | 5 |
| Lubrication | With initial lubrication and preservation |
| Ball chain | Without ball chain (standard) |
| Size S1 (profiled rail systems) | 4.3 |
| Seal footnote | No preferred variants/combinations (partially longer delivery times) |
| Friction coefficient μ | 0,002 ... 0,003 |
| Size B tolerance (profiled rail systems) | +0.5 |
| Pitch T guide rail | 60 |
| Height of runner block with guide rail | 24 |
| Dynamic torsional moment load capacity Mt | 39 |
| Size N6 (profiled rail systems) | 10.3 |
| Friction coefficient μ max. | 0.003 |
| Size H2 with cover strip (profiled rail systems) | 16.2 |
| Size B (profiled rail systems) | 44.7 |
| Preload class | C0 – Without preload (clearance) |
| Size H2 with cover strip (profiled rail systems) | 16.3 |
| Seal | LS – Low-friction seal |
| Size B1 (profiled rail systems) | 25.7 |
| Size H (profiled rail system) | 24 |
| Friction coefficient μ min. | 0.002 |
| Size K2 (profiled rail systems) | 17.85 |
| Size V1 | 5 |
| Productgroup ID | 17 |
| Accuracy class | H - Highly accurate |
| Size K4 (profiled rail systems) | 3.2 |
| Size B with tolerance (profiled rail systems) | 44,7 mm +0,5 |
| Size K1 (profiled rail systems) | 16.25 |
| Size K3 (profiled rail systems) | 3.2 |
| Size A1 (profiled rail systems) | 23.5 |
| Dynamic longitudinal moment load capacity ML footnote | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
| Permissible ambient temperature (max) | +80 |
| Size S9 thread diameter x lead with tolerance (profiled rail systems) | M2,5x3,5 |
| Size S2 (profiled rail systems) | M5 |
| Permissible ambient temperature (min) | -10 |
| Note: Max. acceleration amax | If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2 |
| Runner block or guide rail | Runner block |
| Width of runner block | 47 |
| Size T1 min (profiled rail systems) | 12 |
| Dynamic torsional moment load capacity Mt footnote | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
| Size E8 (profiled rail systems) | 24.55 |
| Length of runner block | 44.7 |
| Size S9 thread diameter x lead with (profiled rail systems) | M2,5x3,5 |
| Linear guide type | Ball rail system |
| Dynamic load capacity C | 3900 |
| Size E9 (profiled rail systems) | 6.7 |
| Size N1 (profiled rail systems) | 5.2 |
| Size E1 (profiled rail systems) | 38 |
| Internal product information | For LS – low-friction seal with external longitudinal seal |
| Weight | 0.150 |
| Nominal size | 15 |
| Size H1 (profiled rail systems) | 19.9 |
