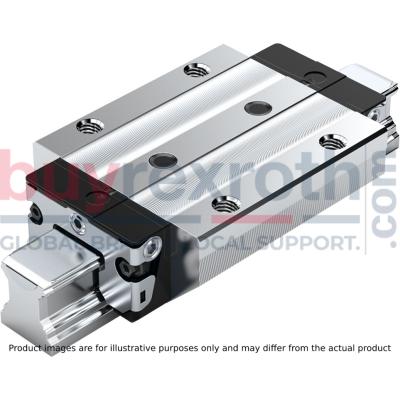

BALL RUNNER BLOCK CARBON STEEL KWD-030-FLS-C1-H-1

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth B.RUNNER BLOCK CS KWD-030-FLS-C1-H-1 (R165371320) is a high-precision ball runner block designed for superior performance in linear motion applications. This runner block features a size 30 profile and is crafted from unalloyed steel CS, ensuring durability and robustness. It is classified under preload class C, indicating a low preload, which contributes to reduced frictional oscillations and a lower friction force level, especially under external load conditions. The B.RUNNER BLOCK CS offers exceptional accuracy with its high (H) accuracy class. The product does not include a ball chain but comes with initial lubrication and preservation for extended service life. It boasts excellent dynamic characteristics that are beneficial for applications requiring maximum precision. The patented entry zone of the runner block significantly enhances travel accuracy by up to six times. This model is designed without attachment elements on the left or right front reference edges and includes a straight lube connection that is loosely attached. The overall length of the runner block is optimized to ensure compatibility with guide rails of every accuracy, allowing interchangeability and flexibility in use. The Bosch Rexroth B.RUNNER BLOCK CS KWD-030-FLS-C1-H-1 is well-suited for demanding rigidity requirements and can handle high torque loads effectively. Its design permits the use of just one runner block per rail in some applications due to its high rigidity in all load directions. Additionally, it features two extra mounting screw holes at the center to improve rigidity under liftoff and side loading conditions. An optional integrated, inductive, wear-free measuring system can be added for precise feedback on positioning. Attachments can be mounted from both above and below the block, enhancing versatility. The runner block is compatible with all SN/SNO ball guide rails from Bosch Rexroth and maintains high load ratings in all four main loading directions. Pre-lubricated at the factory, this ball runner block ensures long-term lubrication possibilities over several years while offering comprehensive sealing options to protect against contaminants. With its advanced design features and robust construction, the B.RUNNER BLOCK CS KWD-030-FLS-C1-H-1 (R165371320) facilitates seamless integration into various linear motion systems where precision and reliability are paramount.
