BALL RUNNER BLOCK CARBON STEEL KWC-065-FLS-C2-U-2

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

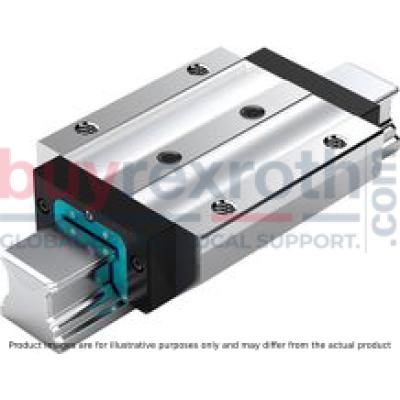

The Bosch Rexroth B.RUNNER BLOCK CS KWC-065-FLS-C2-U-2 (R165362910) is a high-precision ball runner block designed for demanding applications requiring maximum rigidity and load-bearing capacity. This runner block, part of the Ball Rail Systems, is made from unalloyed steel CS and comes in size 65 with a long flange format (FLS) and standard height. It features a medium preload (preload class C), ultra precision accuracy (class UP), and does not include a ball chain. The B.RUNNER BLOCK CS KWC-065-FLS-C2-U-2 is preserved but ships without initial lubrication, attachment elements, or angular lube nipples, which are loosely attached. The body of the runner block is in the standard version with an overall length specified by the manufacturer. It boasts improved rigidity under liftoff and side loading conditions due to additional mounting screw holes at its center. This ball runner block has been designed for heavy machine construction and can handle extremely high load capacities with ease. Its innovative channel design ensures minimum lubrication quantities are required while providing smooth and quiet operation. The optimized entry zone geometry along with a high number of balls reduces variation in elastic deflection. Interchangeability is a key feature of this product, allowing it to be combined with guide rails of every accuracy level to meet various application needs. The attachments can be mounted from both above and below, providing flexibility in design integration. It's compatible with all SNS Ball Guide Rails, offering limitless interchangeability across all versions. Additional specifications include dynamic load capacity C, static longitudinal moment load capacity ML, dynamic torsional moment load capacity Mt, and various profiled rail system sizes that it can accommodate. The product also features multiple seal options such as Standard seal SS for universal sealing requirements, Low-friction seal LS for ease of movement applications, Double-lip seal DS for increased exposure to media, Front seal for environments with fine dirt or metal particles exposure as well as coolants or cutting fluids use cases which are interchangeable during servicing; FKM seal designed for extreme environments; and Cover plate wiper suitable for environments with coarse dirt or chips. All these characteristics make the Bosch Rexroth B.RUNNER BLOCK CS KWC-065-FLS-C2-U-2 an ideal solution for applications where durability, precision, and versatility are critical.
