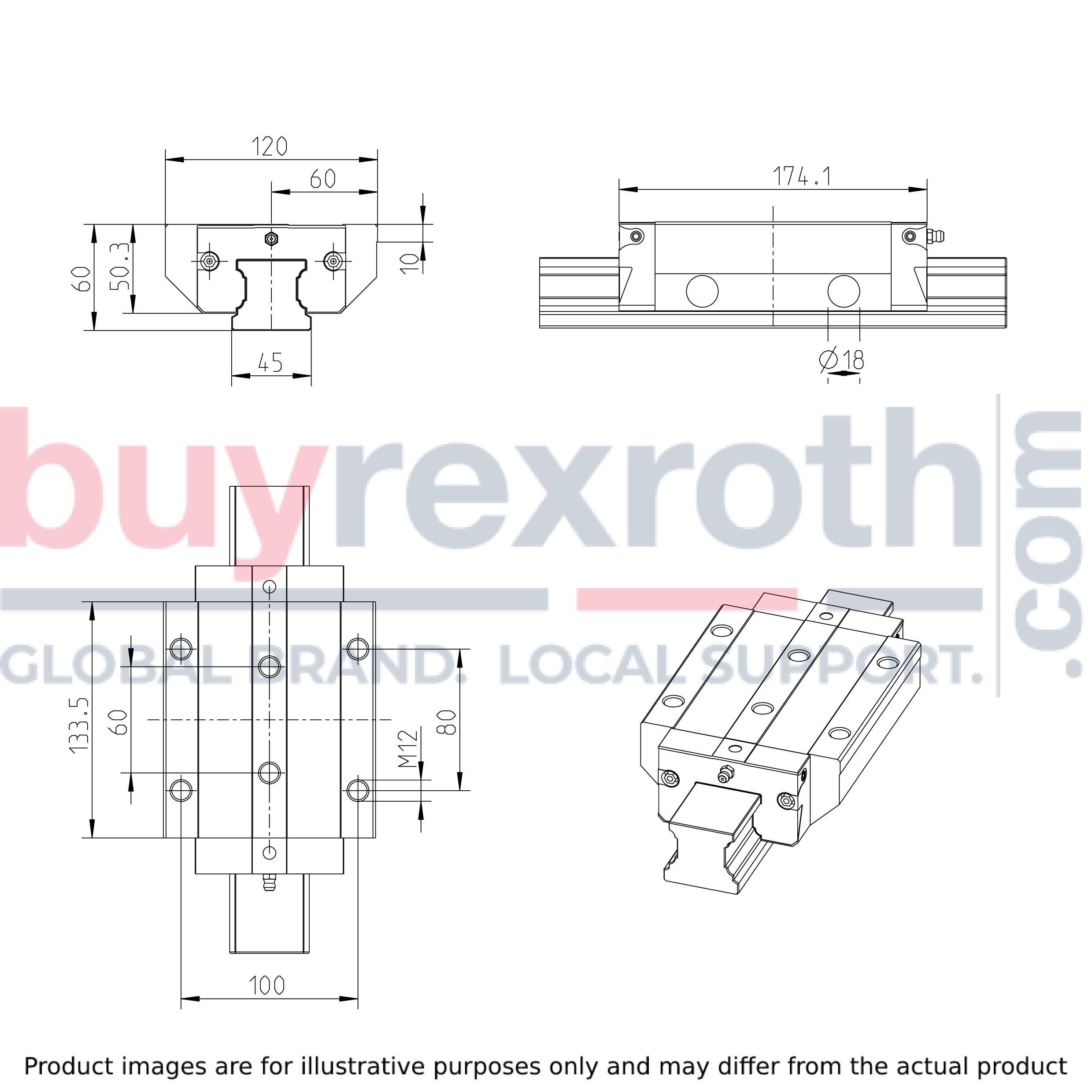

BALL RUNNER BLOCK CARBON STEEL KWD-045-FLS-C3-S-1

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth B.RUNNER BLOCK CS KWD-045-FLS-C3-S-1 (R165343120) is a high-precision ball runner block designed for superior performance in linear motion applications. This particular model features a flanged, long, and standard height (FLS) format, constructed from unalloyed steel CS for durability. It boasts a high preload class C and an accuracy class SP, indicating super precision capabilities without the inclusion of a ball chain. The runner block body comes with initial lubrication and preservation to ensure smooth operation from the outset. With an overall length of the runner block being . mm, this component is interchangeable with guide rails of every accuracy level, allowing for flexible integration into various systems. The B.RUNNER BLOCK CS KWD-045-FLS-C3-S-1 is engineered to meet the most demanding rigidity requirements while maintaining low frictional oscillations and force levels, especially when under external loads. Its dynamic characteristics are enhanced by a patented entry zone that can increase travel accuracy by up to six times. This ball runner block also features long-term lubrication capabilities spanning several years, with lube fittings equipped with metal threads on all sides for easy maintenance. The design includes high torque load capacity and offers multiple preload classes. It's capable of providing high rigidity in all load directions which allows for applications using just one runner block per rail. Additional design benefits include improved rigidity under lift-off and side loading conditions due to two extra mounting screw holes at the center of the block. For maximum system rigidity, it utilizes a preloaded O-arrangement. An optional integrated inductive measuring system can be added without experiencing wear issues. Attachments can be mounted from both above and below the ball runner block. This product is compatible with all SN/SNO ball guide rails and maintains high load ratings in all four main loading directions. The B.RUNNER BLOCK CS comes prelubricated from the factory to ensure optimal performance upon installation.
