BALL RUNNER BLOCK CARBON STEEL KWD-035-FLS-C2-P-1
Manufacturer: Bosch Rexroth
Material #: R165332222
Model : B.RUNNER BLOCK CS KWD-035-FLS-C2-P-1
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

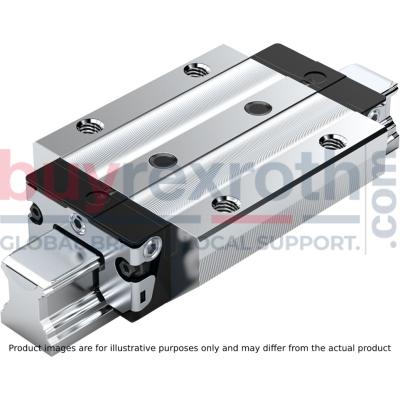

The Bosch Rexroth B.RUNNER BLOCK CS KWD-035-FLS-C2-P-1 (R165332222) is a state-of-the-art ball runner block designed for linear motion applications that demand high precision and rigidity. This product is characterized by its FLS format with a flange width, long length, and standard height, constructed from unalloyed steel CS. It boasts a medium preload class C and an accuracy class P, ensuring precision in operation. The ball runner block comes equipped with a ball chain to facilitate smooth travel behavior and reduced noise levels.
This Bosch Rexroth runner block is prelubricated at the factory for initial use and features long-term lubrication capabilities, which can span several years without the need for maintenance. It includes metal-threaded lube fittings on all sides and an end-face fastening thread for versatile attachment options. The integrated all-around sealing provides protection against contaminants, enhancing the longevity of the component.
Engineered for demanding rigidity requirements, this runner block significantly reduces frictional oscillations and maintains a low friction force level even under external load conditions. Its excellent dynamic characteristics are ideal for applications requiring maximum precision. The patented entry zone increases travel accuracy up to six times compared to standard systems.
The B.RUNNER BLOCK CS offers high torque load capacity and comes in different preload classes to suit various application needs. Its design allows for improved rigidity under lift-off and side loading conditions due to additional mounting screw holes at the center of the block. For enhanced system rigidity, it utilizes a preloaded O-arrangement.
The product's versatility extends to its compatibility with all SN/SNO ball guide rails while maintaining high load ratings in all four main directions of loading. Optional features include an integrated, inductive, and wear-free measuring system that can be added upon request. Attachments can be mounted from both above and below the runner block, providing flexibility in design integration.
$431.66 USD
More are expected on March 17, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as March 17, 2025 when ordered in
