BALL RUNNER BLOCK CARBON STEEL KWC-065-FNS-C0-H-2

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

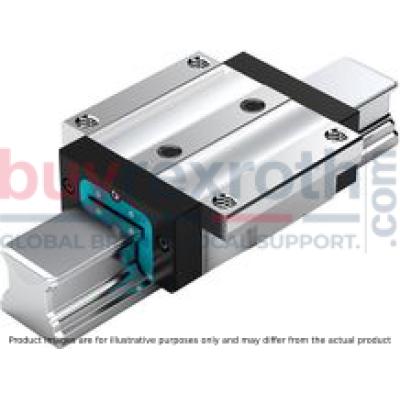

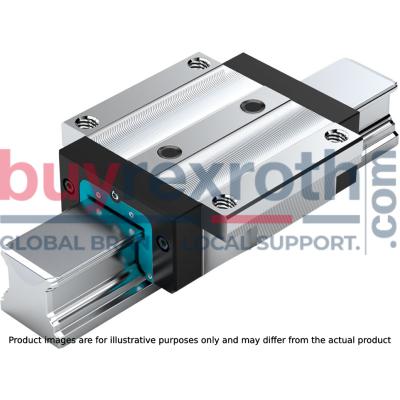

The Bosch Rexroth B.RUNNER BLOCK CS KWC-065-FNS-C0-H-2 (R165169310) is a high-precision ball runner block designed for heavy-duty applications requiring maximum rigidity and load-bearing capacity. This runner block is part of the Ball Rail Systems and features a size 65 FNS format, which denotes a flanged width, normal length, and standard height. The body of the runner block is made from unalloyed steel CS, ensuring durability and strength. The B.RUNNER BLOCK CS boasts high accuracy with its H class precision and comes preload-free (preloading class C). Notably, it does not include a ball chain, thus simplifying its design. It is preserved but does not come with initial lubrication and lacks attachment elements on both left and right front reference edges. However, angular lube nipples are loosely attached for ease of maintenance. This product stands out for its ability to handle heavy machine construction tasks due to its extremely high load-bearing capacity. It offers improved rigidity under lift-off and side loading conditions through additional mounting screw holes at the center of the block. High torque load capacity is another feature that makes this runner block suitable for demanding applications. The B.RUNNER BLOCK CS allows attachments to be mounted from both above and below, providing flexibility in assembly. Its innovative channel design ensures minimum lubrication quantities are required while maintaining smooth operation. The ball return system has been optimized for quiet running, reducing noise levels during use. Interchangeability is a key advantage of this product; it can be combined with any guide rails within the same accuracy range without compatibility issues. It supports different preload classes and has an end-face fastening thread for various attachments. Overall, the Bosch Rexroth B.RUNNER BLOCK CS KWC-065-FNS-C0-H-2 (R165169310) offers reliability and versatility for applications that demand high rigidity and precise movement control in challenging industrial settings.
