This product is not available. CLICK HERE to create a support ticket for us to locate your part or a suitable replacement

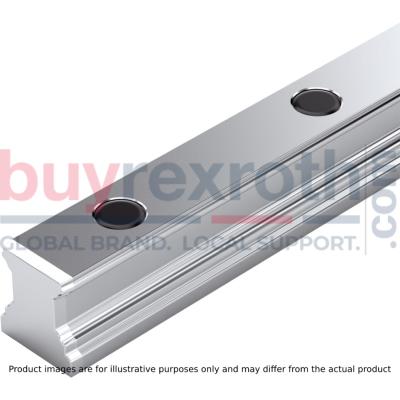

| Maximum rigidity in all load directions |
| High torque load capacity |
| For mounting from above with plastic mounting hole plugs |
| Corrosion-resistant Resist CR coating: matte-silver, hard chrome plated |
| No extra space needed at rail ends |
| Observe the instruction for mounting! Please request the “Mounting instructions for ball rail systems.” |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size T (profiled rail systems) | 60 |
| Material (profiled rail systems) | Hard chrome plated |
| Size N6 with tolerance (profiled rail systems) | 13,2 mm ±0,5 |
| Number of sections | One-piece |
| Guide rail mounting | For bolting from above |
| Product information | Uncoated end faces |
| Footnote permissible ambient temperature (min ... max) | 100°C admissible for short time. For operation at negative temperatures, please consult us. |
| Max. length Lmax | 3836 |
| Size S5 (profiled rail system) | 6 |
| Permissible ambient temperature | 0 °C ... +80 °C |
| Size N6 tolerance (profiled rail systems) | |
| Format | SNS – Standard guide rail |
| Size A2 (profiled rail systems) | 20 |
| Size D | 9.4 |
| Guide rail cover | Plastic caps |
| Mass m (kg/m) | 2.4 |
| Size T1 s (profiled rail systems) | 28 |
| Number of holes nB (profiled rail systems) | 64 |
| Pitch T guide rail | 60 |
| Size N6 (profiled rail systems) | 13.2 |
| Footnote of size T1 s (profiled rail systems) | Preferred dimension T1S with tolerances ± 0.75 recommended. |
| Size H2 with cover strip (profiled rail systems) | 20.55 |
| Recommended rail length (formula) | L = nB • T ‒ 4 mm |
| Productgroup ID | 17 |
| Accuracy class | H - Highly accurate |
| Permissible ambient temperature (max) | |
| Permissible ambient temperature (min) | |
| Runner block or guide rail | Guide rail |
| Size T1 min (profiled rail systems) | 10 |
| Size T1 max (profiled rail systems) | 50 |
| Linear guide type | Ball rail system |
| Weight | 0.000 |
| Nominal size | 20 |
| Version | Ball rail system |
