$219.95 USD
More are expected on March 21, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as March 21, 2025 when ordered in
$219.95 USD
Status: This product is temporarily out of stock.
Qty: Delivered as early as March 21, 2025 when ordered in
Area of application: For restricted space in the transverse direction |
For very high loads |
The same high load ratings in all four main directions of loading |
Long-term lubrication is possible over several years |
Limitless interchangeability as all ball guide rail systems can be combined at will with all ball runner block versions within each accuracy class. |
High torque load capacity |
Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection |
Attachments on the ball runner block can be mounted from above |
Integrated all-round sealing |
Minimum quantity lubrication system with integrated reservoir for oil lubrication |
End-face fastening thread for all attachments |
Can be used on all SNS/SNO ball guide rails |
Excellent dynamic characteristics: Excellent dynamic characteristics |
Different preload classes |
Data Sheet | Download Data Sheet |
2D CAD | Download 2D CAD |
2D CAD | Download 2D CAD |
3D CAD | Download 3D CAD |
3D CAD | Download 3D CAD |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Height of runner block | 25.35 |
Footnote permissible ambient temperature (min ... max) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
Footnote dynamic load capacity C | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
Size E2 (profiled rail systems) | 50 |
Footnote friction coefficient μ | Without friction of seal |
Permissible ambient temperature | -10 °C ... +80 °C |
Format | SLS - slimline, long, standard height |
Self-aligning for compensation of misalignments | Without self-alignment |
Ball chain | Without ball chain (standard) |
Friction coefficient μ | 0,002 ... 0,003 |
Size B tolerance (profiled rail systems) | |
Pitch T guide rail | 60 |
Height of runner block with guide rail | 30 |
Static load rating C0 | 41800 |
Dynamic torsional moment load capacity Mt | 380 |
Size H2 with cover strip (profiled rail systems) | 20.55 |
Preload class | C2 – Average preload |
Size B1 (profiled rail systems) | 65.6 |
Size H (profiled rail system) | 30 |
Friction coefficient μ min. | 0.002 |
Accuracy class | H - Highly accurate |
Size K4 (profiled rail systems) | 3.35 |
Size B with tolerance (profiled rail systems) | 91 mm +0,5 |
Size K3 (profiled rail systems) | 3.35 |
Size A1 (profiled rail systems) | 22 |
Static torsional moment load capacity Mt0 | 540 |

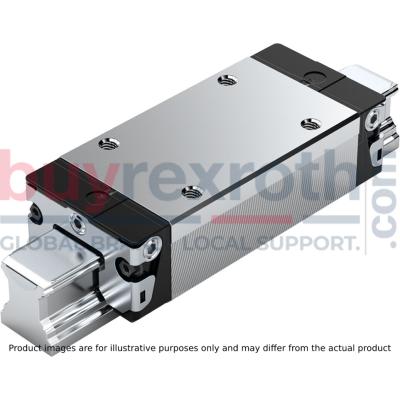

Runner block or guide rail | Runner block |
Width of runner block | 44 |
Size E8 (profiled rail systems) | 32.5 |
Length of runner block | 91 |
Linear guide type | Ball rail system |
Dynamic load capacity C | 29600 |
Static longitudinal moment load capacity ML0 | 490 |
Size E9 (profiled rail systems) | 7.3 |
Size E1 (profiled rail systems) | 32 |
Material (profiled rail systems) | Carbon steel |
Size N6 with tolerance (profiled rail systems) | 13,2 mm ±0,5 |
Size S5 (profiled rail system) | 6 |
Max. acceleration amax | 500 |
Size A (profiled rail systems) | 44 |
Size N6 tolerance (profiled rail systems) | |
Size A3 (profiled rail systems) | 12 |
Preload force | 1950 |
Size A2 (profiled rail systems) | 20 |
Maximum permissible linear speed vmax | 5 |
Lubrication | With initial lubrication and preservation |
Seal footnote | No preferred variants/combinations (partially longer delivery times) |
Size N3 (profiled rail systems) | 7.5 |
Size N6 (profiled rail systems) | 13.2 |
Friction coefficient μ max. | 0.003 |
Size B (profiled rail systems) | 91 |
Size H2 with cover strip (profiled rail systems) | 20.75 |
Seal | DS – Double-lip seal |
Size K2 (profiled rail systems) | 14.8 |
Size V1 | 6 |
Productgroup ID | 17 |
Size K1 (profiled rail systems) | 14.8 |
Dynamic longitudinal moment load capacity ML footnote | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
Permissible ambient temperature (max) | |
Size S9 thread diameter x lead with tolerance (profiled rail systems) | M3x5 |
Dynamic longitudinal moment load capacity ML | 340 |
Size S2 (profiled rail systems) | M5 |
Permissible ambient temperature (min) | |
Note: Max. acceleration amax | If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2 |
Size T1 min (profiled rail systems) | 13 |
Dynamic torsional moment load capacity Mt footnote | Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26. |
Size S9 thread diameter x lead with (profiled rail systems) | M3x5 |
Internal product information | For LS – low-friction seal with external longitudinal seal |
Weight | 0.450 |
Nominal size | 20 |
Size H1 (profiled rail systems) | 25.35 |
