BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C0-H-1

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

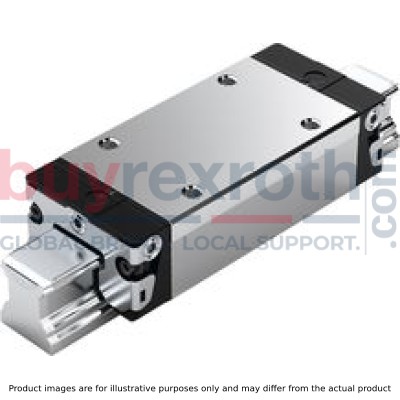

The Bosch Rexroth B.RUNNER BLOCK CS KWD-045-SLS-C0-H-1 (R162349320) is a ball runner block designed for precision linear movement in various applications. This model is part of the Ball Rail Systems and features a slimline width, long length, and standard height format (SLS), tailored to fit restricted spaces with high load requirements. The runner block body is constructed from unalloyed steel CS, ensuring durability and stability. With an accuracy class H indicating high precision and a preload class C signifying that it is preload-free, this component guarantees smooth motion without unnecessary tension. The B.RUNNER BLOCK CS KWD-045-SLS-C0-H-1 comes without a ball chain, but it includes initial lubrication and preservation for extended service life. It utilizes roller bearing grease Dynalub which contributes to its reliable performance over time. The design allows for easy attachment from above without requiring additional elements on the left or right front reference edges. With its straight lube connection loosely attached, maintenance is straightforward. This runner block boasts high torque load capacity due to its optimized entry-zone geometry and numerous balls that minimize elastic deflection variation under load. It features integrated all-around sealing to protect against contaminants and employs a minimum quantity lubrication system with an integrated reservoir for oil lubrication, enhancing its efficiency in various working conditions. The B.RUNNER BLOCK CS KWD-045-SLS-C0-H-1 can be used with all SN/SNO ball guide rails, providing excellent dynamic characteristics suited for multiple industrial applications. Its interchangeable design ensures compatibility with guide rails of every accuracy level within the same class, allowing limitless combinations for tailored solutions. The product also supports long-term lubrication options and can withstand ambient temperatures ranging from minimum to maximum degrees Celsius as specified in the detailed specifications provided by Bosch Rexroth.
