R162329422

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C0-N-1

Manufacturer: Bosch Rexroth

Material #: R162329422

Model : B.RUNNER BLOCK CS KWD-025-SLS-C0-N-1


***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

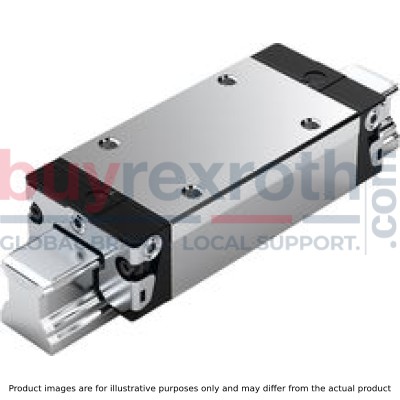

The Bosch Rexroth B.RUNNER BLOCK CS KWD-025-SLS-C0-N-1 (R162329422) is a high-precision ball runner block designed for linear motion applications where space is limited and high loads are expected. This runner block features a slimline width, long length, and standard height format (SLS), crafted from unalloyed steel CS to ensure durability and stability under various operating conditions. It is preload-free (preload class C) and offers standard accuracy (accuracy class N), making it suitable for a wide range of industrial applications. Equipped with a ball chain, this runner block ensures low noise operation and optimal travel behavior. The initial lubrication and preservation reduce the need for frequent maintenance, while the roller bearing grease Dynalub extends its service life. Its design allows for high torque load capacity, with optimized entry-zone geometry that minimizes variation in elastic deflection during use. The B.RUNNER BLOCK CS facilitates limitless interchangeability within each accuracy class, as it can be combined with all ball guide rail systems offered by Bosch Rexroth. Moreover, it boasts excellent dynamic characteristics that contribute to improved machine performance. For ease of installation, attachments can be mounted from above, and the runner block includes an end-face fastening thread for all attachments. It also features integrated all-around sealing to protect against contaminants and has a minimum quantity lubrication system with an oil reservoir for efficient lubrication over time. This product is compatible with all SN/SNO ball guide rails provided by Bosch Rexroth and can operate within an ambient temperature range of -10°C to +100°C. Its overall length is specified at . mm, ensuring compatibility with corresponding guide rails for seamless integration into various systems. In summary, the Bosch Rexroth B.RUNNER BLOCK CS KWD-025-SLS-C0-N-1 (R162329422) offers robust performance in compact spaces while handling high loads effectively across multiple industrial applications. Its design emphasizes low maintenance needs, ease of installation, exceptional dynamic properties, and reliable operation over an extended period.

$250.33 USD

More are expected on February 19, 2025
  Add to Cart

Status: This product is temporarily out of stock.


Qty: Delivered as early as February 19, 2025 when ordered in
