BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C3-XP-1

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

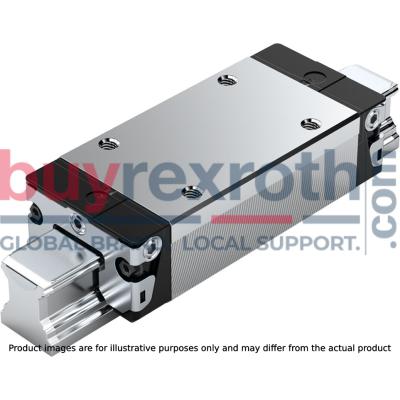

The Bosch Rexroth B.RUNNER BLOCK CS KWD-015-SLS-C3-XP-1 (R16231382Y) is a ball runner block designed for high precision and rigidity in linear motion applications. This runner block features a slimline width, long length, and standard height (SLS format), constructed from unalloyed steel CS, which ensures durability and robustness. It is characterized by a high preload class C and an extra precision accuracy class XP, optimizing its performance for applications requiring exacting movement control. The B.RUNNER BLOCK CS comes with an integrated ball chain that facilitates smooth and quiet travel behavior. It also includes initial lubrication and preservation with Dynalub roller bearing grease, enhancing its longevity and reducing maintenance requirements. The runner block is engineered with optimized entry-zone geometry, increasing the number of balls to minimize variation in elastic deflection. This design allows for high torque load capacity and excellent dynamic characteristics. Notably, this model offers limitless interchangeability within each accuracy class of ball guide rail systems provided by Bosch Rexroth. Attachments to the runner block can be mounted from above, providing flexibility in the assembly process. The unit also boasts an all-round sealing system for protection against contaminants and a minimum quantity lubrication system with an integrated reservoir suitable for oil lubrication. With dimensions specifying an overall length of the runner block at . mm and a height of . mm, the B.RUNNER BLOCK CS can handle very high loads in all four main directions. Its static load rating C0 and dynamic load capacity C are based on DIN ISO standards, ensuring reliable performance over time. This product is suitable for environments where space is limited in the transverse direction but where high loads are expected. It can operate within a permissible ambient temperature range from min ... to max °C for short periods—consultation is advised for operation at negative temperatures. With its advanced features, the Bosch Rexroth B.RUNNER BLOCK CS KWD-015-SLS-C3-XP-1 (R16231382Y) delivers precise linear guidance suitable for various demanding applications.
