BALL RUNNER BLOCK CARBON STEEL KWD-030-SNS-C3-X-1

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

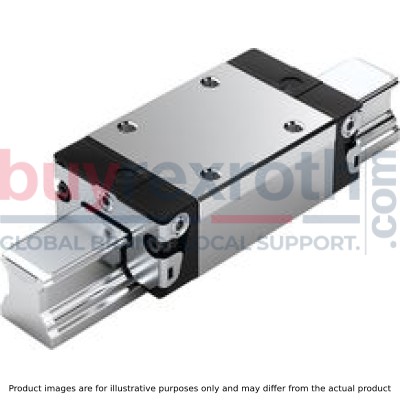

The Bosch Rexroth B.RUNNER BLOCK CS KWD-030-SNS-C3-X-1 (R162273822) is a high-precision ball runner block designed for linear motion applications. This runner block is part of the Ball Rail Systems product group and is distinguished by its size, slimline width, normal length, and standard height. The body of the runner block is constructed from unalloyed steel CS and it features a high preload class C, ensuring robust performance under high load conditions. It boasts an extra precision accuracy class XP for applications requiring precise guidance. This model comes with a ball chain to promote smooth travel behavior and low noise levels during operation. It also includes initial lubrication and preservation for reduced maintenance needs. The roller bearing grease used is Dynalub, known for its longevity and effectiveness. The B.RUNNER BLOCK CS KWD-030-SNS-C3-X-1 can handle high torque loads and maintains the same high load ratings in all four main directions of loading, which speaks to its versatility in various mounting orientations. It has been designed with optimized entry-zone geometry to minimize variation in elastic deflection, enhancing its reliability. For attachment convenience, this ball runner block allows attachments to be mounted from above and includes an end-face fastening thread. Its integrated all-around sealing system ensures protection against contaminants, while the minimum quantity lubrication system with an integrated reservoir allows for oil lubrication that can last several years. This Bosch Rexroth runner block is interchangeable with guide rails within each accuracy class thanks to its limitless interchangeability feature. Furthermore, it can be used on all SNS/SNO ball guide rails offered by Bosch Rexroth. In terms of dynamic characteristics, the B.RUNNER BLOCK CS KWD-030-SNS-C3-X-1 excels with excellent dynamic capacities making it suitable for fast-moving applications. It has been pre-lubricated at the factory which helps ensure a long service life right from the start. The unit's design accommodates self-aligning capabilities to compensate for any misalignments during installation or operation. Overall dimensions include a runner block body length of . mm and a height of . mm when paired with E profiled rail systems. The product also features a static load rating C0 and dynamic torsional moment load capacity Mt that are determined based on DIN ISO standards. Users should note that permissible ambient temperatures range from min ... max °C; however, consulting Bosch Rexroth is recommended when operating at negative temperatures.
