BALL RUNNER BLOCK CARBON STEEL KWC-065-SNS-C1-H-2

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

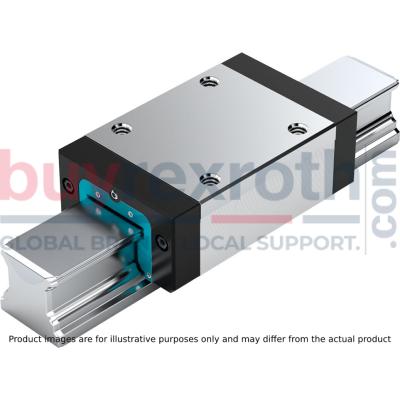

The Bosch Rexroth B.RUNNER BLOCK CS KWC-065-SNS-C1-H-2 (R162261310) is a state-of-the-art ball runner block designed for high precision and rigidity in linear motion applications. This runner block is part of the SNS series, which stands for slimline width, normal length, and standard height, ensuring it fits well in applications where space is limited in the transverse direction. The body of the runner block is made from unalloyed steel CS, contributing to its durability and robustness. With a low preload class C and a high accuracy class H, this runner block delivers smooth motion with minimal play and exceptional precision. It does not feature a ball chain, which simplifies its design while maintaining its performance capabilities. It's also preserved without initial lubrication and lacks attachment elements on both left and right front reference edges. The B.RUNNER BLOCK CS KWC-065-SNS-C1-H-2 is notable for its ability to handle heavy loads with high load ratings in all four main loading directions. It operates quietly with excellent travel behavior and can accommodate different preload classes. The presence of angular lube nipples attached loosely allows for easy maintenance and long-term lubrication over several years. This product's versatility extends to its compatibility with all SNS ball guide rails, allowing for interchangeability between the runner block and guide rails across various accuracy levels. Its design includes an endface fastening thread suitable for all attachments. In terms of technical specifications, the runner block exhibits high dynamic load capacity C as per DIN ISO norms, significant static load rating C0, dynamic torsional moment load capacity Mt, as well as static longitudinal moment load capacity ML. It can withstand ambient temperatures ranging from minimum to maximum degrees Celsius (exact values not specified), making it suitable for diverse operating environments. Overall, the Bosch Rexroth B.RUNNER BLOCK CS KWC-065-SNS-C1-H-2 is an optimal solution for heavy-duty machine construction that requires reliable linear motion under substantial load conditions while maintaining precision and longevity.
