CLAMPING ELEMENT HK 6505 KR

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

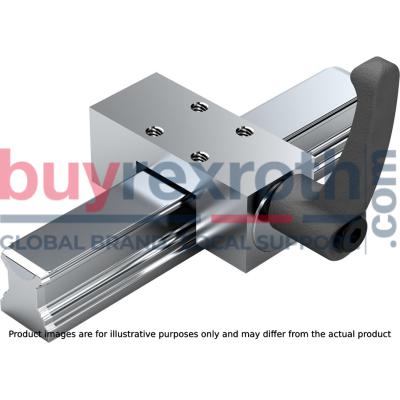

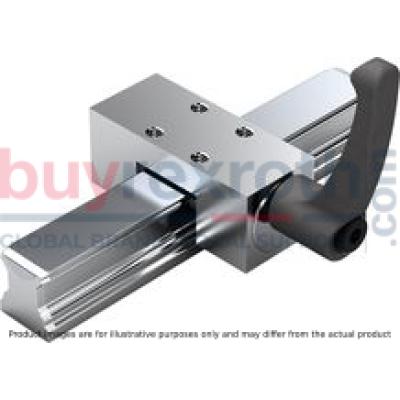

The Bosch Rexroth CLAMPING ELEMENT HK 6505 KR (R161964282) is a manual clamping unit designed for high precision and secure fastening in various applications utilizing ball and roller rail systems. This unit is specifically engineered to work seamlessly with all SNS ball and roller guide rail systems, ensuring a broad compatibility range. It features a simple, safe, and compact design that provides a manually operated clamping mechanism without the need for auxiliary power. The clamping element is equipped with a freely adjustable hand lever which allows for precise positioning and ease of operation during the clamping process. The HK 6505 KR boasts impressive holding forces up to N, ensuring that components are held securely in place during use. Its design ensures symmetrical force application on the guide rails through floating contact profiles, which enhances stability and performance. This model is suitable for various sizes of profiled rail systems including Size H, Size E, Size A, Size N, Size L, Size B, Size C, and Size S with thread diameter profiled rail systems M. The robust construction of this clamping element allows it to operate within a wide range of ambient temperatures from C to C while maintaining its efficiency. The HK 6505 KR's functionality is based on manual pressure application; the hand lever when engaged presses the clamping profiles onto the web surfaces of the guide rail. This action produces a secure clamp without requiring additional tools or power sources. Its mechanical size is tailored to provide an optimal fit for different system sizes while maintaining high durability through numerous clamping cycles. Overall, this Bosch Rexroth manual clamping unit represents an essential accessory for profiled rail systems where reliable manual clamping is required. It offers both flexibility in terms of rail system compatibility and reliability in securing components during machine operations.
