BRAKING ELEMENT KBH 6505 AS1A

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

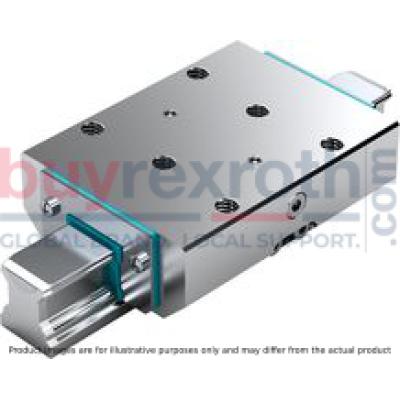

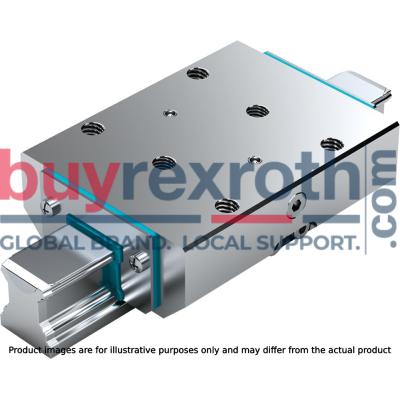

The Bosch Rexroth BRAKING ELEMENT KBH 6505 AS1A (R161964021) is a high-performance hydraulic braking unit designed for use with ball rail systems. This robust component features integrated all-round sealing and a solid, rigid steel housing that is chemically nickel-plated, ensuring durability and resistance to harsh conditions. It's compatible with DIN standards and offers a compact design that facilitates easy integration into various applications. Capable of up to 10 million clamping cycles and up to 250,000 emergency braking operations, the KBH 6505 AS1A provides reliable performance over an extended service life. It boasts a high holding force and precise positioning accuracy due to brake shoes with integrated positive-locking, large-surface contact profiles that ensure maximum axial rigidity. The unit operates with a release pressure of 50 bar and utilizes special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage. The functional principle of the KBH 6505 AS1A involves hydraulic oil pressing the large-scale clamping profiles directly onto the flanks of the ball guide rail through a piston mechanism under hydraulic pressure of up to 350 bar. Decompression occurs swiftly thanks to a pre-tensioned return spring, allowing for short decompression cycles. This super heavy-duty model is designed to withstand low displacement values while maintaining its Bd value throughout its operational lifespan. It can be used on all sizes of SNS ball guide rails, including size A, B, E, H, N, and S profiled rail systems. The unit has threaded connections on both sides for hydraulic connections and supports an ambient temperature range from -30°C up to +80°C. With its nominal size tailored for specific profiled rail systems and accessories for clamping and braking units, the KBH 6505 AS1A is an essential component for ensuring safe and efficient operation in linear motion applications.
