CLAMPING ELEMENT MK 3505 KB ...

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

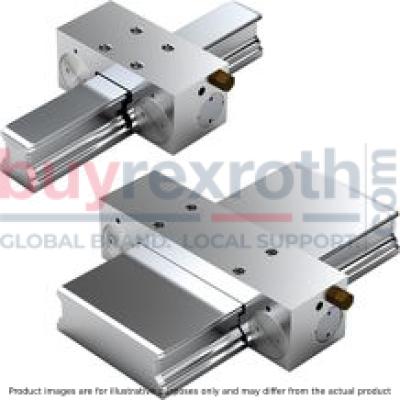

The Bosch Rexroth CLAMPING ELEMENT MK 3505 KB (R161934262) is a high-performance pneumatic clamping unit designed for use with ball rail systems. It offers exceptional axial holding forces in a compact format, providing both dynamic and static stabilization in the axial direction. The simple mechanical gripping principle employed by this clamping element ensures an excellent price-performance ratio, making it an economical choice for a wide range of applications. This clamping unit is compatible with all SNS ball guide rails and is notable for its high axial and horizontal rigidity, ensuring precise positioning even under demanding circumstances. The chemically nickel-plated steel housing adds to the durability of the unit, contributing to its ability to withstand up to 1 million clamping cycles. With a nominal size that accommodates various profiled rail systems including sizes H, E, A, B, N, and S thread diameter profiled rail systems, this versatile component can be seamlessly integrated into existing setups. The Bosch Rexroth MK 3505 KB features continuously adjustable pressure ranging from 2-6 bar and utilizes a preloaded return spring for rapid decompression cycles. Its design allows for easy mounting and efficient operation with minimal air consumption—typically around 2.4 liters per cycle at standard air port size. Ideal for applications requiring exact positioning with high dynamics and powerful drive capabilities, this pneumatic clamping element operates effectively within a permissible ambient temperature range of -10°C to +80°C. Its functional principle relies on either air pressure or spring force for clamping action—clamping profiles press against the web surfaces of the ball guide rail—and decompression is similarly achieved through these forces allowing free movement when required. In summary, the Bosch Rexroth CLAMPING ELEMENT MK 3505 KB (R161934262) provides robust performance and reliability for securing components in place on ball rail systems across various industrial applications.
