INSTALLATION JIG 25

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

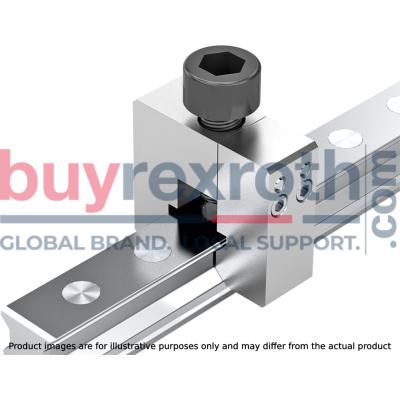

The Bosch Rexroth INSTALLATION JIG 25 (R161921020) is a specialized mounting tool designed for the secure and precise installation of steel caps into roller guide rails. This two-piece tool is an essential accessory for those utilizing profiled rail systems, ensuring that hole plugs are correctly mounted within built-in guide rails. Accompanied by clear mounting instructions, the INSTALLATION JIG 25 simplifies the installation process, promoting efficiency and accuracy in assembly operations. Crafted with meticulous attention to detail, this mounting tool is only available as a single part and has been tailored to fit specific nominal sizes and cross-sections of guide rails. Its robust construction reflects Bosch Rexroth's commitment to quality and durability in their accessories for profiled rail systems. The INSTALLATION JIG 25's functionality is particularly crucial for applications where precision and reliability of linear motion systems are paramount. In summary, the Bosch Rexroth INSTALLATION JIG 25 (R161921020) is an indispensable tool that provides a straightforward solution for fitting steel caps into roller guide rails, thereby facilitating the maintenance and assembly of linear guide systems.
