BALL GUIDE RAIL CARBON STEEL KSA-020-SNS-S-MB-00

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

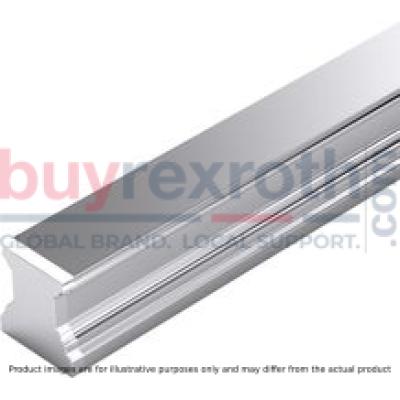

The Bosch Rexroth B.GUIDE RAIL CS (R160780132) is a high-precision ball guide rail system designed for applications requiring extreme accuracy and rigidity. This guide rail is part of the SNS size format, which denotes a slimline width, normal length, and standard height, making it suitable for various installations where space efficiency is crucial. Manufactured from carbon steel (CS), the guide rail ensures durability and consistent performance. The B.GUIDE RAIL CS features a two-piece rail system that allows for greater side load capacities and enhanced sealing action from end seals. The mounting of this guide rail is facilitated by fastener MB, which permits bolting from below for a secure and stable attachment. This design choice contributes to the system's maximum rigidity in all load directions and its high torque load capacity. With an accuracy class of super precision (SP), this product meets the stringent requirements of applications that demand superior guidance accuracy. The absence of a cover strip simplifies the design while maintaining functionality and ease of maintenance. The Bosch Rexroth B.GUIDE RAIL CS can withstand permissible ambient temperatures ranging from minimum to maximum degrees Celsius, although it should be noted that consultations are recommended for operations at negative temperatures. The maximum length Lmax for this guide rail is specified in meters (m), ensuring compatibility with various installation lengths. This product has a weight per meter (kg/m) that reflects its robust construction without compromising efficiency. Its nominal size provides an indication of its compatibility with different runner blocks or guide rails within the same series. In summary, the Bosch Rexroth B.GUIDE RAIL CS offers exceptional precision, rigidity, and versatility for linear motion applications where space constraints and load capacity are critical considerations. Its construction allows for easy installation from below without requiring extra space at the ends of the rails, making it an ideal choice for a wide range of industrial settings.
