BALL GUIDE RAIL CARBON STEEL KSA-045-SNS-H-MA-AK

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

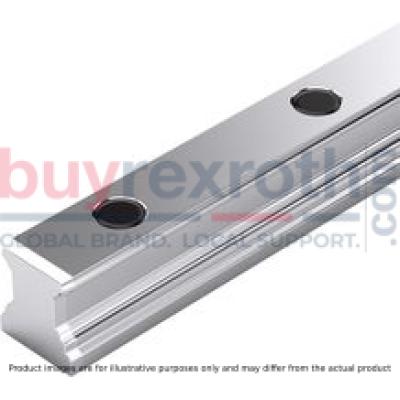

The Bosch Rexroth B.GUIDE RAIL CS (R160540331) is a high-precision ball guide rail designed for linear motion applications requiring maximum rigidity and torque load capacity. This slimline SNS format rail is made from carbon steel (CS) and offers a high accuracy class, ensuring precise movement and alignment in demanding scenarios. The guide rail is a one-piece construction, which eliminates the need for additional space at the rail ends and facilitates easy mounting from above using plastic mounting hole plugs. The B.GUIDE RAIL CS is characterized by its robust design, capable of withstanding permissible ambient temperatures ranging from -20°C to 80°C, making it suitable for various operating environments. For applications involving temperatures outside this range, consultation with Bosch Rexroth is advised. The maximum length of the rail (Lmax) can be tailored to specific requirements, providing flexibility in system design. This model features a T profiled rail system with a tolerance profiled rail size N in millimeters. It also includes plastic caps as a cover (AK), enhancing the durability of the guide rail by preventing contamination. The mass of the guide rail is 2.3 kg/m, which provides an optimal balance between strength and weight. For bolting from above, the fastener type MA is used, which simplifies installation processes. The recommended formula for determining the appropriate rail length takes into account the number of holes (nB) and pitch (T), ensuring compatibility with various configurations. In summary, the Bosch Rexroth B.GUIDE RAIL CS offers exceptional precision and reliability for linear motion systems that require a robust guide rail capable of handling significant loads while maintaining high accuracy over extended periods of use.
