PILLOW BLOCK SEB-F-A 40

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

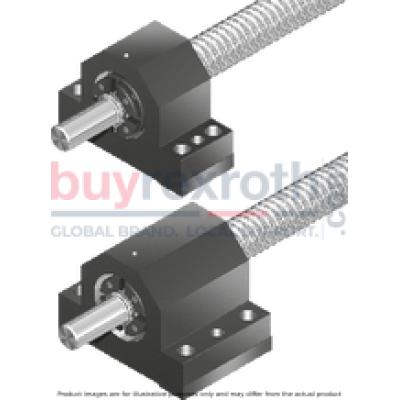

The Bosch Rexroth PILLOW BLOCK (R159114030) is a high-precision assembly group pillow block unit designed for robust performance and reliability. This unit is part of the SEB-F-A 40 series, characterized by its sturdy steel precision pillow block housing with reference edges on both sides, ensuring accurate alignment and installation. It incorporates an angular contact thrust ball bearing LGN that offers excellent axial support and load handling capabilities. The PILLOW BLOCK R159114030 also comes equipped with a slotted nut, either NMA or NMZ, in addition to threaded rings GWR which contribute to the unit's overall stability and ease of maintenance. This particular model is versatile and suitable for screw ends in Forms A, B, C, D, and E, making it adaptable for various applications. With a dynamic load capacity denoted as "C," this pillow block unit can withstand significant operational demands while maintaining its performance integrity. The static load rating "C" indicates its ability to handle loads without motion, ensuring the longevity of the assembly under stationary forces. The size specifications such as V, d, H1, SW1, H2 are meticulously designed to meet exacting requirements and ensure compatibility with a range of setups. The tightening torque specification ensures that all components are securely fastened for optimal operation. As an accessory for Rexroth ball screw assemblies, this pillow block unit not only supports but enhances the functionality of the entire system. Its nominal size allows it to be integrated into various machine designs without compromising on space or efficiency. Additionally, the weight specification underscores its robustness while still being manageable for installation purposes. In summary, the Bosch Rexroth PILLOW BLOCK R159114030 is a versatile and durable component designed to offer reliable support in precision applications where alignment and load handling are critical. Its comprehensive design features make it a valuable addition to any setup requiring high-quality motion control components.
