PILLOW BLOCK SEB-F-Z 30

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

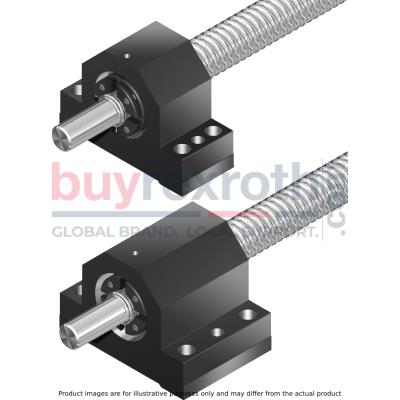

The Bosch Rexroth PILLOW BLOCK (R159113020) is a high-precision component designed to provide stable and accurate support for ball screw assemblies. This pillow block unit, part of the SEB-F-Z 30 series, is meticulously engineered to ensure optimal performance in demanding applications. The unit is comprised of a robust steel precision pillow block housing with reference edges on both sides, which facilitates precise alignment and installation. Integrated within the housing is an angular contact thrust ball bearing LGN that ensures smooth motion and handles both radial and axial loads efficiently. To secure the bearing in place, the pillow block comes equipped with a slotted nut, either NMA or NMZ, along with threaded rings GWR that allow for fine adjustments and secure locking of the bearing position. This particular model is versatile and suitable for screw ends in Forms A, B, C, D, E, confirming its adaptability to various design requirements. The PILLOW BLOCK SEB-F-Z 30 boasts impressive load capacities with a dynamic load capacity (C) and static load rating (Co) that ensure it can handle the stresses of operation without compromising accuracy or lifespan. The exact size specifications such as Size V, Size d, Size H1, Size SW1, Size H2 are critical for ensuring compatibility with corresponding ball screw assemblies and achieving precise mounting. Featuring a tightening torque specification that guarantees secure fastening without over-stressing the components, this pillow block unit maintains its structural integrity even under high loads. As an accessory specifically designed for Rexroth ball screw assemblies, this pillow block unit has a nominal size tailored to fit seamlessly into existing systems. Overall, the Bosch Rexroth PILLOW BLOCK SEB-F-Z 30 represents a reliable solution for fixed bearing applications requiring high precision angular contact thrust ball bearings. Its robust construction and thoughtful design details make it an essential component for ensuring smooth operation in various mechanical setups.
