PILLOW BLOCK SEB-F-Z 6

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

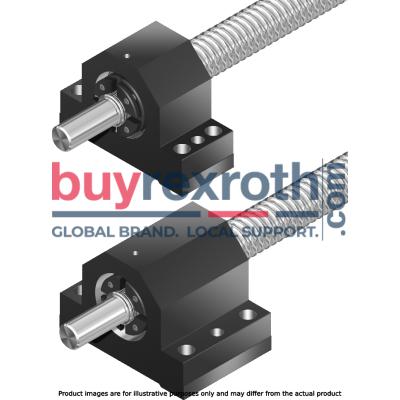

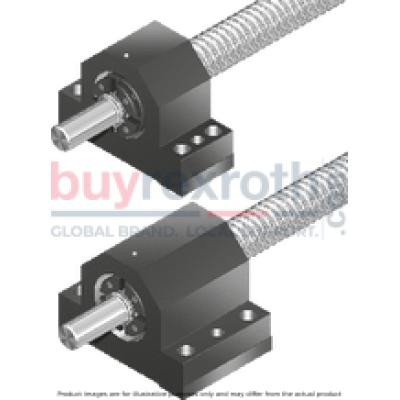

The Bosch Rexroth PILLOW BLOCK (R159110620) is a precision-engineered component designed for robust support and accurate alignment in linear motion applications. This pillow block unit, part of the assembly group SEBF, is notable for its size V construction and includes a high-quality steel precision pillow block housing with reference edges on both sides. The unit features an angular contact thrust ball bearing LGN, ensuring smooth and precise motion transfer. It is secured with a slotted nut, either NMA or NMZ, and includes threaded rings GWR for reliable assembly. This pillow block is suitable for accommodating screw ends in Forms A, B, C, D, E, F, G, H, I, J and K. It boasts a dynamic load capacity (C) that enables it to handle the demands of various axial loads while maintaining performance integrity. The static load rating (C0) further underscores its capability to withstand static forces without compromise. The Bosch Rexroth PILLOW BLOCK has dimensions that include size d for the screw diameter compatibility, size H1 representing the height of the unit from the base to the center of the bearing bore, along with size SW and size H2 which are critical for installation specifications. The tightening torque specification ensures that this pillow block can be securely fastened with appropriate force to prevent movement during operation. As an accessory for Rexroth ball screw assemblies, this pillow block unit complements a system designed for efficiency and precision. Its nominal weight adds minimal mass to the overall assembly while providing sturdy support. With its comprehensive design tailored to enhance linear motion mechanisms' performance and reliability, this Bosch Rexroth PILLOW BLOCK serves as a fundamental component in constructing or maintaining high-precision machinery where alignment and stability are paramount.
