$1,873.37 USD
Product Surcharge: $14.06 USD
Status: This product is temporarily out of stock.
Qty: Delivered as early as September 11, 2025 when ordered in

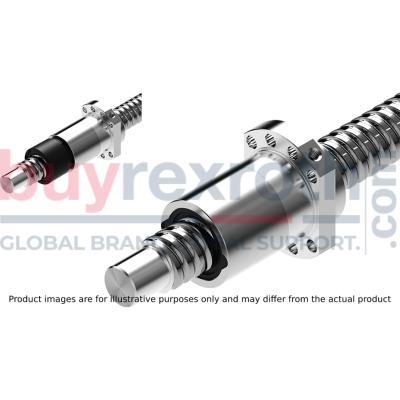

| Mounting dimensions similar to DIN 69051, Part 5 flange type B |
| Nut for significantly increasing the dynamic and static load capacity |
| With seals |
| Preload class: C0, C00, C1, C2 |
| Tolerance grade: T3 (for sizes as per the product overview for screws, see general technical notes and information, “Product description”), T5, T7, T9 |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size D5 | 135 |
| Size L with tolerance | 149 mm |
| Bearing temperature max | |
| Series | High-performance series |
| Bearing temperature min | |
| Nut or screw | Screw drive nut |
| Maximum operating temperature | |
| Footnote dynamic load capacity C | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). |
| Bearing temperature | -15 °C ... +80 °C |
| Category | B |
| Minimum operating temperature | |
| Size L4 | 45 |
| Size D6 | 115 |
| Size L3 | 22 |
| Size L10 | 115 |
| Operating temperature | -10 °C ... +80 °C |
| Maximum permissible linear speed vmax (m/min) | 95 |
| Direction of lead | Right |
| Lead | 40 |
| Footnote static load capacity C0 | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). |
| Size L5 | 12 |
| Static load rating C0 | 230600 |
| Size D1 g6 | 95 |
| Size L14 | 100 |
| Note: Maximum permissible speed vmax | See "Characteristic speed d0 • n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed ncr" (see General Technical Notes and Information, "Project planning notes") |
| Nut type | FED-E-B single nut with flange |
| Productgroup ID | 17 |
| Screw drive version (drive type) | Ball screw assembly |
| Size D7 | 13.5 |
| Hole pattern | BB1 |
| Size Sx | 5 |
| Footnote permissible operating temperature (min...max) | Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case. |
| Dynamic load capacity C | 100000 |
| Size d1 | 61 |
| Size L | 149 |
| Size d2 | 56.3 |
| Footnote operating temperature max. | Ball screw assemblies permit operation at continuous temperatures of up to 80°C with temporary peaks of 100°C, measurements taken on the outer shell of the nut in each case. |
| Weight | 5.050 |
| Nominal size | 63 x 40 R x 6,5 - 6 |
