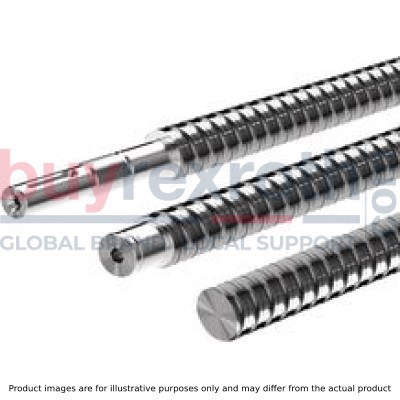

BALL SCREW 16X5RX3 (T7)

Manufacturer: Bosch Rexroth

Material #: R151101700

Model : BALL SCREW 16X5RX3 (T7)

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth BALL SCREW 16X5RX3 (R151101700) is a high-precision ball screw assembly designed for linear motion applications. It features a nominal diameter of 16 mm and a lead of 5 mm, with a right-hand thread direction. The ball screw has been engineered to deliver smooth and accurate movement, thanks to its precisely manufactured ball diameter and tolerance grade T7, ensuring a high degree of positional accuracy for the application it serves. This ball screw is classified as a Precision spindle in the product group and is identified by its specific drive type as a Ball screw assembly. It boasts an impressive maximum operating temperature range, capable of continuous operation at temperatures up to +80°C and can withstand temporary peaks up to +100°C, as measured on the outer shell of the nut. The minimum operating temperature for this component starts from -10°C, providing versatility across various working environments. The BALL SCREW 16X5RX3 has been crafted with careful consideration for durability and performance. Its maximum length (Lmax) specification ensures suitability for extended applications without compromising precision or efficiency. The unit's mass is calculated at kg/m, with an associated moment of inertia (Js), which contributes to its dynamic characteristics. In summary, this Bosch Rexroth ball screw is designed for reliability and precise control in linear motion systems. Its construction adheres to strict tolerance grades, allowing for consistent performance across different temperature ranges and making it an ideal choice for demanding applications that require meticulous movement control.

This product is not available. CLICK HERE to create a support ticket for us to locate your part or a suitable replacement

BALL SCREW 16X5RX3 (T7)

Precision screw, size 16 x 5R x 3, T7

Precision screw
Nominal diameter d0 = 16
Lead P = 5 (right)
Ball diameter Dw = 3
Tolerance grade T7 (0.052/300 mm)

Unpacked Weight: 0.000 kg

Product overview

Data Sheet	Download Data Sheet
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Bearing temperature max	+80
Bearing temperature min	-15
Productgroup ID	17
Nut or screw	Precision spindle
Screw drive version (drive type)	Ball screw assembly
Maximum operating temperature	+80
Tolerance grade screw	T7 (0.052/300mm)
Max. length Lmax	1500
Bearing temperature	-15 °C ... +80 °C
Minimum operating temperature	-10
Operating temperature	-10 °C ... +80 °C
Direction of lead	Right
Mass m (kg/m)	1.24
Lead	5
Moment of inertia Js	0.31
Footnote permissible operating temperature (min...max)	Ball screw assemblies permit operation at continuous temperatures of up to 80°C with temporary peaks of 100°C, measurements taken on the outer shell of the nut in each case.
Size d1	15
Size d2	12.9
Footnote operating temperature max.	Ball screw assemblies permit operation at continuous temperatures of up to 80°C with temporary peaks of 100°C, measurements taken on the outer shell of the nut in each case.
Weight	0.000
Nominal size	16 x 5R x 3

Operating conditions

Size	Admissible operating temperature (min ... max) 2)	Admissible storage temperature (min ... max)
	Admissible operating temperature (min ... max) 2)	Admissible storage temperature (min ... max)
6 x 1R x 0,8 1)	-10 °C ... +80 °C	-15 °C ... +80 °C
6 x 2R x 0,8 1)
8 x 1R x 0,8 1)
8 x 2R x 1,2 1)
8 x 2,5R x 1,588
8 x 5R x 1,588
12 x 2R x 1,2 1)
12 x 5R x 2
12 x 10R x 2
16 x 5L x 3
16 x 5R x 3
16 x 10R x 3
16 x 16R x 3
20 x 5R x 3
20 x 5L x 3
20 x 10R x 3
20 x 20R x 3,5
20 x 40R x 3,5 1)
25 x 5R x 3
25 x 5L x 3
25 x 10R x 3
25 x 25R x 3,5
32 x 5R x 3,5
32 x 5L x 3,5
32 x 10R x 3,969
32 x 20R x 3,969
32 x 32R x 3,969
32 x 64R x 3,969 1)
40 x 5R x 3,5
40 x 5L x 3,5
40 x 10R x 6
40 x 10L x 6
40 x 12R x 6
40 x 16R x 6
40 x 20R x 6
40 x 25R x 6
40 x 30R x 6
40 x 40R x 6
50 x 5R x 3,5
50 x 10R x 6
50 x 12R x 6
50 x 16R x 6
50 x 20R x 6,5
50 x 25R x 6,5
50 x 30R x 6,5
50 x 40R x 6,5
63 x 10R x 6
63 x 20R x 6,5
63 x 40R x 6,5
80 x 10R x 6,5
80 x 20R x 12,7 1)

1)	Size not available as cut length
2)	Ball screw assemblies are suitable for continuous operation at temperatures up to 80 °C with temporary peaks of 100 °C (measurements taken on the outer shell of the nut).

Technical notes

	Please state length in the “Inquiry/Order Form”
	Ltot = overall length

Dimensions and technical data

Size	d1	d2	Lmax	Length on request	Js	Mass
d0 x P x Dw	mm		mm	mm	kg•cm²/m	kg/m
6 x 1R x 0,8 1)	6	5.3 mm	-	-	0.02	0.19
6 x 2R x 0,8 1)	6	5.3 mm			0.02	0.19
8 x 1R x 0,8 1)	8	7.3 cm			0.04	0.36
8 x 2R x 1,2 1)	8	7 cm				0.36
8 x 2,5R x 1,588	7.5	6.3 mm	1500	2500		0.3
8 x 5R x 1,588	7.5	6.3 mm	1500	2500		0.3
12 x 2R x 1,2 1)	11.7	10.7 mm	-	-	0.13	0.79
12 x 5R x 2	11.4	9.9 mm	1500	2500	0.11	0.75
12 x 10R x 2	11.4	9.9 mm		2500	0.11	0.74
16 x 5L x 3	15	12.9 mm		3500	0.31	1.24
16 x 5R x 3						1.24
16 x 10R x 3						1.23
16 x 16R x 3					0.34	1.29
20 x 5R x 3	19	16.9 mm			0.84	2.03
20 x 5L x 3
20 x 10R x 3
20 x 20R x 3,5		16.7 mm			0.81	1.99
20 x 40R x 3,5 1)		16.4 mm	-	-	0.86	2.06
25 x 5R x 3	24	21.9 mm	2500	5500	2.22	3.31
25 x 5L x 3					2.22	3.31
25 x 10R x 3					2.39	3.43
25 x 25R x 3,5		21.4 mm			2.15	3.25
32 x 5R x 3,5	31	28.4 mm			6.05	5.45
32 x 5L x 3,5		28.4 mm			6.05	5.45
32 x 10R x 3,969		27.9 mm			6.4	5.6
32 x 20R x 3,969					6.39	5.6
32 x 32R x 3,969					6.17	5.5
32 x 64R x 3,969 1)			-	-	6.04	5.44
40 x 5R x 3,5	39	36.4 mm	4500	5500	15.64	8.78
40 x 5L x 3,5	39	36.4 mm		5500	15.64	8.78
40 x 10R x 6	38	33.8 mm		7500	13.55	8.15
40 x 10L x 6				7500	13.55	8.15
40 x 12R x 6				5000	13.97	8.27
40 x 16R x 6				5000	12.9	7.95
40 x 20R x 6				7500	13.52	8.14
40 x 25R x 6				5000	13.51	8.67
40 x 30R x 6				5000	13.71	8.67
40 x 40R x 6				7500	13.42	8.11
50 x 5R x 3,5	49	46.4 mm		5500	40.03	14.05
50 x 10R x 6	48	43.8 mm		7500	35.71	13.25
50 x 12R x 6				5000	36.58	13.41
50 x 16R x 6				5000	34.37	13
50 x 20R x 6,5		43.3 mm		7500	34.5	13.01
50 x 25R x 6,5				7500	32.4	12.58
50 x 30R x 6,5				5000	36.64	13.42
50 x 40R x 6,5				7500	34.34	12.98
63 x 10R x 6	61	56.8 mm			95.82	21.72
63 x 20R x 6,5		56.3 mm			93.29	21.42
63 x 40R x 6,5		56.3 mm			93.08	21.4
80 x 10R x 6,5	78	73.3 mm			256.86	35.58
80 x 20R x 12,7 1)	76	67 mm	-	-	211.51	32.16

1)	Size not available as cut length

Legend

Symbol	Description	Unit
d0	Nominal diameter	mm
P	Lead
DW	Ball diameter	mm
Js	Moment of inertia	kg • cm2/m
Lmax	Maximum length	mm

Calculation

Installation

Measuring pads

Gauge with a self-aligning contact pad on the screw For the easy alignment of the ball screw assembly in the machine Two measuring pads of different lengths are available
