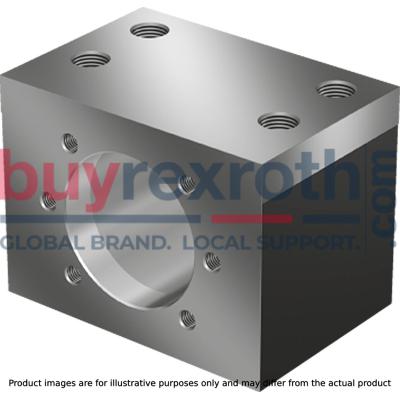

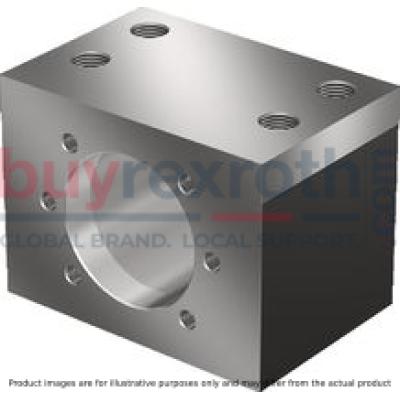

HOUSING MGD

Manufacturer: Bosch Rexroth

Material #: R150640050

Model : HOUSING MGD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth HOUSING MGD (R150640050) is a robust nut housing designed to work seamlessly with a range of Bosch Rexroth ball screw assemblies. Specifically crafted to accommodate FEMEB, FDMEB, SEMEC, and FEDEB nuts, this nut housing ensures a secure and precise fit for optimal performance in linear motion applications. Its construction adheres to the exacting standards of Productgroup ID Size E and Size H, with a precise hole pattern BB Size L that facilitates easy mounting and alignment. The MGD series nut housing is distinguished by its solid steel construction, which provides exceptional strength and durability for extended use in demanding environments. This particular model boasts compatibility with nominal size x ball screws, ensuring that it meets the specific requirements of various mechanical systems. The inclusion of necessary accessories for integration into existing setups makes this nut housing an essential component for maintenance or upgrades involving Rexroth ball screw assemblies. In summary, the Bosch Rexroth HOUSING MGD R150640050 is a high-quality accessory designed to enhance the functionality and reliability of ball screw systems. Its compatibility with specified nut sizes and adherence to precise manufacturing standards make it an indispensable part of any linear motion setup requiring the renowned precision and robustness of Bosch Rexroth components.

$211.87 USD

Availability: 2 In Stock

Add to Cart

Available for immediate shipment

Qty: Delivered as early as December 23, 2024 when ordered in

HOUSING MGD

Housing MGD 40x5/10/12/16/20/25/30/40

Steel nut housings MGD are designed for FEM-E-B, FDM-E-B, SEM-E-C and FED-E-B nuts, size 40x5/10/12/16/20/25/30/40

Unpacked Weight: 3.515 kg

Steel nut housings MGD are designed for FEM-E-B, FDM-E-B, SEM-E-C and FED-E-B nuts

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD
3D CAD	Download 3D CAD
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Size A	80
Productgroup ID	17
Size E1	90
Size D1 h7	63
Size N	31
Size H	42
Size E2	35
Size D6	78
Size S	15
Hole pattern	BB1
Size T1	25
Size T2	17
Size L	65.5
Accessories for screw drives	Nut housing
Size B	60
Weight	3.515
Size H1	84
Nominal size	40x5/10/12/16/20/25/30/40

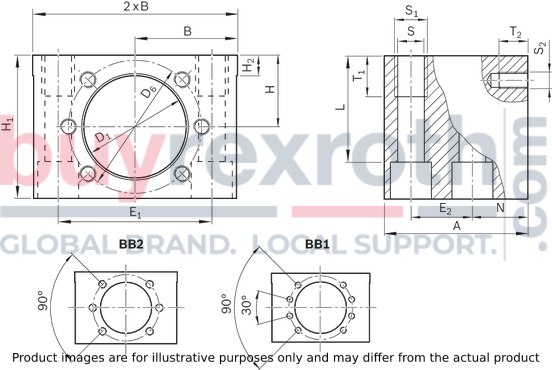

Technical data and dimensions

Size	Mass	Hole pattern	Hex socket cap screw	A	B	D1	D6	E1	E2	H	H1	H2	N	S	S1	T1	S2	T2	Clamping length
d0 x P x Dw	Mass	Hole pattern	ISO 4762	A	B	H7	D6	E1	E2	H	H1	H2	N	S	S1	T1	S2	T2	L
	kg			mm		mm	mm				mm	mm	mm	mm		mm		mm	mm
16 x 5R/L x 3 16 x 10R x 3 16 x 16R x 3	0.91	BB2	M8	50	35 mm ±0.01	28	38	50 mm ±0.1	20 mm ±0.1	24 mm ±0.01	48	10	20	8.4	M10	15	M5	10	37
20 x 5R/L x 3 20 x 10R x 3 20 x 20R x 3,5	1.18			55	37.5 mm ±0.01	36	47	55 mm ±0.1	23 mm ±0.1	28 mm ±0.01	56		22				M6	11	45
25 x 5R/L x 3 25 x 10R x 3 25 x 25R x 3,5	1.33			55	40 mm ±0.01	40	51	60 mm ±0.1	23 mm ±0.1	30 mm ±0.01	60		22				M6	11	49
32 x 5R/L x 3,5 32 x 10R x 3,969 32 x 20R x 3,969 32 x 32R x 3,969	2.27		M12	70	50 mm ±0.01	50	65	75 mm ±0.1	30 mm ±0.1	35 mm ±0.01	70		27	13	M16	20	M8	14	52
40 x 5R/L x 3,5 40 x 10R/L x 6 40 x 12R x 6 40 x 16R x 6 40 x 20R x 6 40 x 25R x 6 40 x 30R x 6 40 x 40R x 6	3.61	BB1	M14	80	60 mm ±0.01	63	78	90 mm ±0.1	35 mm ±0.1	42 mm ±0.01	84	12	31	15	M18	25	M8	17	65.5
50 x 5R x 3,5 50 x 10R x 6 50 x 12R x 6 50 x 16R x 6 50 x 20R x 6,5 50 x 25R x 6,5 50 x 30R x 6,5 50 x 40R x 6,5	5.63		M16	95	70 mm ±0.01	75	93	110 mm ±0.15	45 mm ±0.15	48 mm ±0.01	96	12	34	17	M20	30	M10	17	75
63 x 10R x 6	6.72			100	75 mm ±0.01	90	108	120 mm ±0.2	46 mm ±0.15	55 mm ±0.01	110	15	37				M10	20	89
63 x 20R x 6,5 63 x 40R x 6,5	7.67				80 mm ±0.01	95	115	130 mm ±0.2		58 mm ±0.01	116						M12		95
80 x 10R x 6,5	8.6				85 mm ±0.01	105	125	140 mm ±0.2		63 mm ±0.01	126								105
80 x 20R x 12,7	10.53				95 mm ±0.01	125	145	160 mm ±0.2		73 mm ±0.01	146							22	125

Legend

Symbol	Description
d0	Nominal diameter
P	Lead
DW	Ball diameter

Attention: If a ball screw assembly with a front lube unit is used, the front lube unit may project beyond the housing. This must be considered when calculating the stroke.

In addition to bolting, the housings should be locked in place by positive means (for example, two pins with a diameter equal to that of the screws).

We recommend using screws with a strength class of 8.8.

Tightening torque

See “Installation” section “Installation in the machine”

Reference edges are formed on both sides.

Required and supplementary documentation

For further instructions and information, please refer to the documentation for this product.

You can find PDF files of these documents on the Internet at www.boschrexroth.com/mediadirectory.

If you are unsure about using this product, please contact Bosch Rexroth.
