R117539014

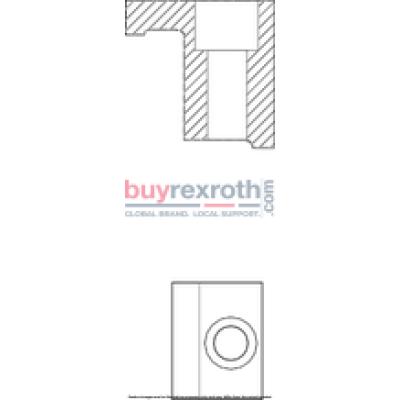

CLAMPING PIECE 35-165

Manufacturer: Bosch Rexroth

Material #: R117539014

Model : CLAMPING PIECE 35-165


***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth CLAMPING PIECE (R117539014) is a meticulously engineered mechanical accessory designed for linear axes, specifically to enhance the stability and precision of linear motion systems. This clamping piece is part of the company's product group for clamping fixtures and is crucial for securing components in place during high-speed operations or when subjected to external forces. With a nominal size designated as MKKMKR, the piece is versatile and suitable for a range of applications. Tailored for use with Bosch Rexroth's linear modules, the recommended number of clamping fixtures varies depending on the type of module in use. For Type 35-165 modules, it is suggested to have a certain number of pieces per side, ensuring adequate support and rigidity. For larger linear modules measuring 165mm and up, the recommendation adjusts to a specific number of clamping pieces per meter per side, allowing for scalable support that corresponds with module length. The CLAMPING PIECE boasts several key specifications that contribute to its functionality, including a specified number of bores N and an exact tightening torque for fixing screws, which should be adhered to according to the strength class. The design incorporates various sizes (A, H, E, D, B, C), each tailored to fit different aspects of the installation process or compatibility with other components. The outer diameter D ensures it fits seamlessly within system configurations without causing disruptions or requiring extensive modifications. Its construction takes into account both efficiency and durability; hence it comes with an exact weight specification that balances robustness with ease of integration into existing systems. Overall, this Bosch Rexroth clamping piece stands out as an essential component for those seeking reliable precision in their linear motion applications.

$30.77 USD

More are expected on March 7, 2025
  Add to Cart

Status: This product is temporarily out of stock.


Qty: Delivered as early as March 7, 2025 when ordered in
