LINEAR-SET LSGF-M-40-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

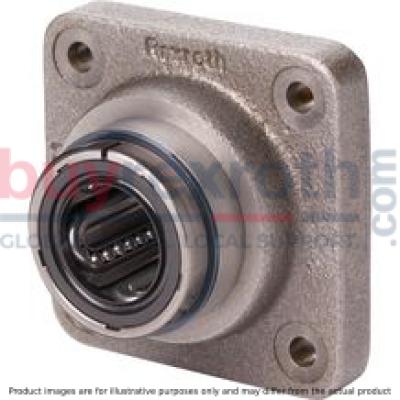

The Bosch Rexroth LINEAR-SET LSGF-M-40-DD (R108124000) is a comprehensive linear motion system designed for precise and smooth linear movement applications. This linear set is constructed from steel and features a flanged housing made of lamellar graphite cast iron, providing robust support and alignment for the shaft. The set includes a standard LB metal linear bushing equipped with wiper seals to prevent contamination, ensuring longevity and consistent performance. The shaft diameter 'd' is tailored to fit seamlessly within the system, accompanied by two retaining rings and additional spacer rings made of steel, which aid in maintaining the correct positioning of the shaft. The radial clearance is non-adjustable, with specifications determined by the working bore diameter in conjunction with shaft tolerance statistics. This model boasts a standard metal series with an h shaft radial clearance that correlates closely to the values specified under radial clearance for Bosch Rexroth's standard R linear bushing. The friction force FR indicates the drag generated by the bushings when not under radial load, which varies based on speed and lubrication conditions. The LINEAR-SET LSGF-M-40-DD can operate effectively within an ambient temperature range of -...°C to ...°C. It has been engineered to handle dynamic loads with minimal capacity values as orientation and direction cannot always be clearly defined. The dynamic load capacity C, static load rating C0, breakaway force, and maximum permissible linear speed vmax are indicative of its capability to withstand various operational demands. This product's weight reflects its sturdy construction and suitability for vertical shaft designs within modular units. As part of Bosch Rexroth's Linear Sets product group, this model represents a reliable solution for diverse linear motion requirements without compromising on quality or performance.
