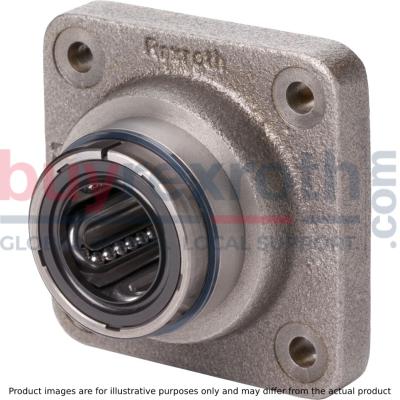

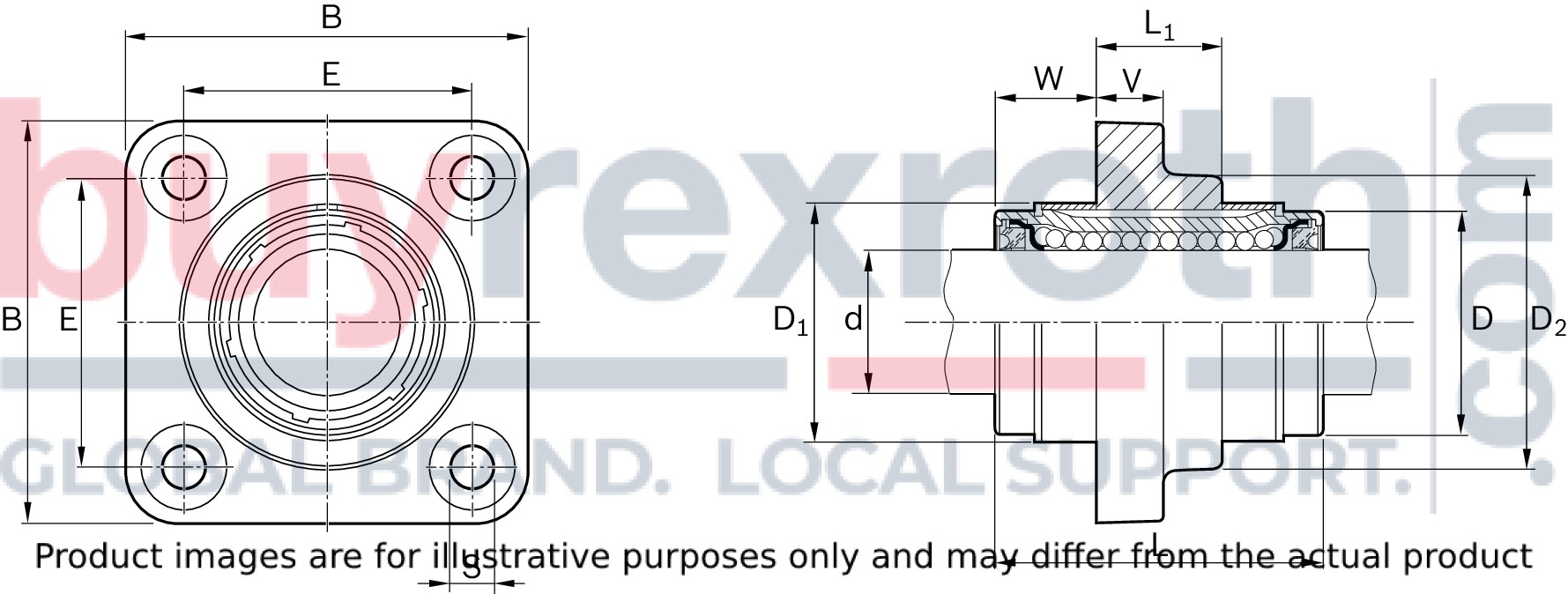

| Flanged housing (lamellar graphite cast iron) |
| Standard linear bushing with wiper seals |
| Two retaining rings with two additional spacer rings (steel) for shaft diameters 12 to 40 |
| Radial clearance not adjustable |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size V | 8 |
| Footnote shaft radial clearance h6 | “Determined from working bore diameter and shaft tolerance statistics. When factoring in the outer diameter of the linear bushings and the housing bore, an h6 shaft produces similar radial clearance values as specified in the “h6/H7" column under "Radial clearance" for the R0610 standard linear bushing.” |
| Series | Standard (metal) |
| Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
| Footnote permissible ambient temperature (min ... max) | for standard linear bushings without wiper seals |
| Footnote dynamic load capacity C | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Max. acceleration amax | 100 |
| Permissible ambient temperature | -10 °C ... +100 °C |
| Size E | 35 |
| Size D1 with tolerance | 28,5 mm +0,8 |
| Outer diameter D | 26 |
| Breakaway force | 9 |
| Maximum permissible linear speed vmax | 2.5 |
| Size D | 26 |
| Size D1 | 28.5 |
| Footnote static load capacity C0 | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Static load rating C0 | 440 |
| Size S H13 | 5.5 |
| Friction force | 3 |
| Productgroup ID | 17 |
| Size W | 10.5 |
| Permissible ambient temperature (max) | |
| Permissible ambient temperature (min) | |
| Size L1 | 15 |
| Size D1 tolerance | |
| Shaft diameter d | 16 |
| Linear guide type | Linear bushing and shaft |
| Filter for linear bushings and shafts | Linear sets with linear bushings |
| Format of linear bushings | F – Flange |
| Dynamic load capacity C | 580 |
| Size L | 36 |
| Size D2 | 34 |
| Size B | 50 |
| Weight | 0.18 |
