$149.83 USD
More are expected on January 4, 2028
Product Surcharge: $1.13 USD
Status: This product is temporarily out of stock.
Qty: Delivered as early as January 4, 2028 when ordered in
$149.83 USD
Product Surcharge: $1.13 USD
Status: This product is temporarily out of stock.
Qty: Delivered as early as January 4, 2028 when ordered in

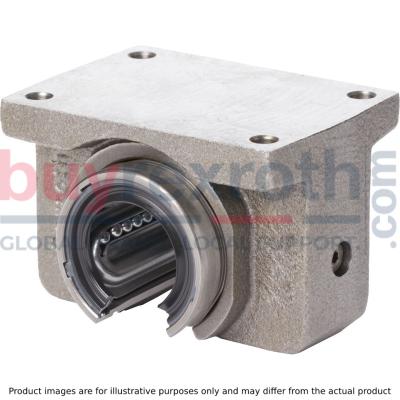

Precision housing (lamellar graphite cast iron/steel) |
Standard linear bushing with wiper seals |
Secured with locating screw |
Data Sheet | Download Data Sheet |
3D CAD | Download 3D CAD |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Size V | 9 |
Series | Standard (metal) |
Footnote friction force FR | Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. |
Size B1 (linear bushing) | 40 |
Size E1 | 60 |
Footnote permissible ambient temperature (min ... max) | for standard linear bushings without wiper seals |
Footnote dynamic load capacity C | The load capacities apply for the main direction of loading. |
Size H | 30 |
Max. acceleration amax | 100 |
Permissible ambient temperature | -10 °C ... +100 °C |
Outer diameter D | 40 |
Breakaway force | 19 |
Maximum permissible linear speed vmax | 2.5 |
Size D | 40 |
Footnote static load capacity C0 | The load capacities apply for the main direction of loading. |
Static load rating C0 | 1750 |
Friction force | 7 |
Size A | 74 |
Productgroup ID | 17 |
Size W | 12.5 |
Permissible ambient temperature (max) | |
Size E2 | 40 |
Angle α | 60 |
Permissible ambient temperature (min) | |
Size S | 5.5 |
Shaft diameter d | 25 |
Linear guide type | Linear bushing and shaft |
Filter for linear bushings and shafts | Linear sets with linear bushings |
Format of linear bushings | O – Open |
Dynamic load capacity C | 2270 |
Size L | 58 |
Size B | 54 |
Weight | 0.635 |
Size D1 with tolerance |
