LINEAR-SET LSGE-M-20-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

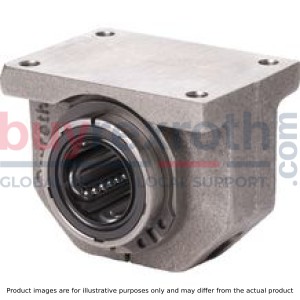

The Bosch Rexroth LINEAR-SET LSGE-M-20-DD (R106622000) is a high-quality linear motion set designed for precision applications. This set includes an adjustable standard linear bushing with wiper seals, crafted from robust steel to ensure durability and performance. The bushing is housed in a precision lamellar graphite cast iron housing, which provides stability and strength. The shaft diameter is designed to accommodate size V series standard metal with two retaining rings for secure installation. This linear set boasts a standard precision design that incorporates two seals to protect against contaminants and maintain the integrity of the internal components. The inclusion of wiper seals also contributes to the friction force FR, which can affect the linear bushing's performance when not under radial load. The product is engineered to handle dynamic load capacities with minimal values, considering that the orientation and direction of loading may vary. For optimal operation, this linear set can withstand maximum permissible accelerations and operates effectively within a specific range of ambient temperatures. It has been meticulously designed to achieve a balance between static load rating and friction force while maintaining tight radial clearance control. The LINEAR-SET LSGE-M-20-DD comes clamped to the h6 shaft lower limit and pre-set for zero-clearance or preload conditions, making it ready for immediate use in various applications. Its outer diameter and breakaway force specifications are tailored for consistent performance, while its maximum permissible linear speed ensures efficiency in motion. Overall, this product from Bosch Rexroth is ideal for users seeking reliable and adjustable linear motion solutions that offer precision, low frictional drag, and robust construction suitable for diverse operational environments.
