LINEAR-SET LSG-A-25-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

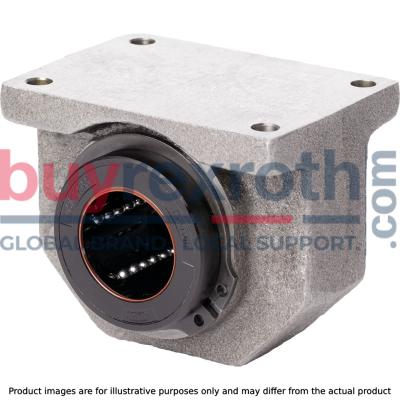

The Bosch Rexroth LINEAR-SET LSG-A-25-DD (R106562540) is a high-quality linear motion set designed for precision applications. This linear set is constructed from steel and features a closed design with super LB A shaft diameter, providing robust operation and durability. The set includes standard precision housing made from lamellar graphite cast iron and a steel super linear bushing A with self-alignment capabilities, ensuring smooth motion and enhanced performance. Integrated wiper seals are included on both sides to protect against contaminants and maintain the integrity of the system. This LINEAR-SET model boasts an impressive static load rating C, which signifies its ability to handle substantial loads in its main direction of operation. For alternative loading directions, the load capacities can be adjusted using specified multiplication factors to ensure optimal performance. The dynamic load capacity C emphasizes the set's ability to withstand operational forces during movement. The maximum acceleration amax highlights the product's capability to handle rapid movements, while the permissible ambient temperature range from -20°C to 80°C ensures reliable function across various environmental conditions. The outer diameter D has been meticulously engineered for compatibility with corresponding components. The breakaway force required for initiating movement is minimal, allowing for smooth starts, while the maximum permissible linear speed vmax indicates the swift motion achievable by this set without compromising service life or component integrity. Tests have confirmed that this model can endure total travel distances ranging significantly without failure. With a weight of 0.7 kg, the LINEAR-SET LSG-A-25-DD provides a balance between sturdiness and ease of handling, making it suitable for various installations requiring precision guides with straightforward installation processes and fixed working bore diameters.
