LINEAR-SET LSG-A-20-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

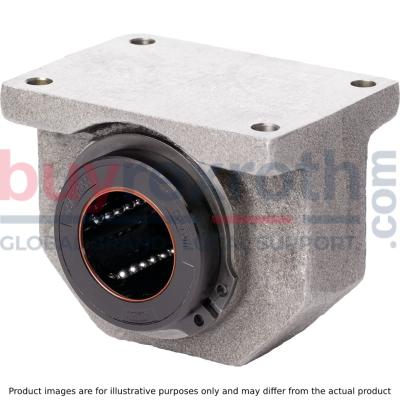

The Bosch Rexroth LINEAR-SET LSG-A-20-DD (R106562040) is a high-quality linear set crafted from steel, featuring a closed design with super LB A linear bushing that provides self-alignment capabilities. It is equipped with integrated wiper seals on both sides to ensure protection against contaminants and to maintain lubrication, enhancing the product's lifespan and performance. The precision housing is made of lamellar graphite cast iron steel, which contributes to the unit's robustness and durability. This linear set has a shaft diameter 'd' and comes in standard precision, ensuring smooth motion and reliable guidance for various applications. The dynamic load capacity 'C' indicates the product's ability to withstand forces during motion, while the static load rating 'C' specifies its capacity when stationary. It can accommodate maximum accelerations ('amax') without compromising performance and operates efficiently within a permissible ambient temperature range of -20°C to 80°C. The outer diameter 'D' of the linear set is designed for compatibility with corresponding equipment, while the breakaway force requirement ensures minimal resistance upon starting motion. It supports maximum permissible linear speeds ('vmax'), with speeds up to 5 m/s being possible; however, at such high speeds, service life may be reduced due to increased wear on plastic parts. With a weight of 0.45 kg, this linear set is suitable for applications requiring precise guidance with easy installation options. The fixed working bore diameter ensures consistent performance across various uses. Its design also considers friction forces which are affected by speed and lubrication conditions but remain low due to the efficient design of the linear bushings with integrated wiper seals. Overall, the Bosch Rexroth LINEAR-SET LSG-A-20-DD (R106562040) stands out as an optimal solution for applications demanding high precision and durability in linear motion tasks.
