LINEAR-SET LSG-M-40

Manufacturer: Bosch Rexroth

Material #: R106514000

Model : LINEAR-SET LSG-M-40

Destination

$223.16 USD

Availability: Backordered

Ships from US

Add to Cart

Qty:
Delivered as early as September 4, 2026

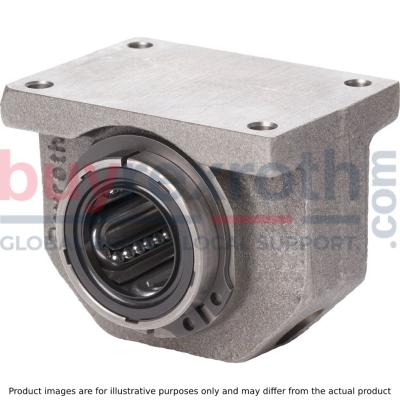

LINEAR-SET LSG-M-40

Linear set (steel), M-40, without seal

Linear set (steel)
Closed
With standard LB (metal)
Shaft diameter d = 40
Without seal
Version: Standard

Unpacked Weight: 2.4 kg

Precision housing (lamellar graphite cast iron/steel)
Standard linear bushing with wiper seals
Two retaining rings

Data Sheet	Download Data Sheet
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Shaft diameter d	40
Linear guide type	Linear bushing and shaft
Filter for linear bushings and shafts	Linear sets with linear bushings
Format of linear bushings	– Closed
Series	Standard (metal)
Dynamic load capacity C	5170
Footnote dynamic load capacity C	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Max. acceleration amax	100
Maximum permissible linear speed vmax	2.5
Outer diameter D	62
Static load rating C0	3810
Footnote static load capacity C0	The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined.
Size H	45
Permissible ambient temperature	-10 °C ... +100 °C
Footnote permissible ambient temperature (min ... max)	for standard linear bushings without wiper seals
Footnote shaft radial clearance h6	“Determined from working bore diameter and shaft tolerance statistics. When factoring in the outer diameter of the linear bushings and the housing bore, an h6 shaft produces similar radial clearance values as specified in the “h6/H7" column under "Radial clearance" for the R0610 standard linear bushing.”
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force	24
Friction force	8
Size A	108
Productgroup ID	17
Permissible ambient temperature (max)	+100
Permissible ambient temperature (min)	-10
Size S	9
Size A1	51
Size B	78
Size D1 with tolerance
Weight	2.4
Size B1 (linear bushing)	56
Size D	62
Size E1	86
Size E2	58
Size H1	90
Size L	80
Size V	12
