SHAFT SUPPORT BLOCK WBG-20F

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

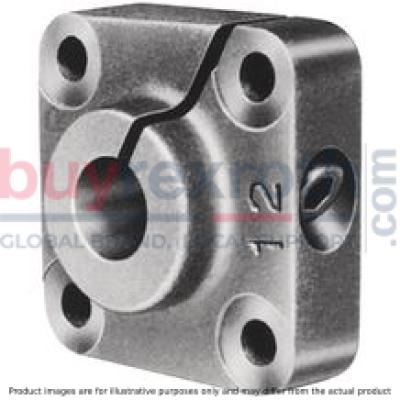

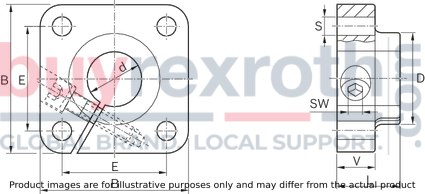

The Bosch Rexroth SHAFT SUPPORT BLOC WBG-20F (R105602000) is a robust component designed for precise linear motion applications. This shaft support block is constructed from lamellar graphite cast iron, ensuring durability and stability in operation. It is specifically engineered to accommodate a shaft diameter 'd,' although the exact measurement is not specified in the provided information. The WBG-20F model features a flange made of gray cast iron, which facilitates easy alignment of shafts and prevents linear bushings from being overloaded due to non-parallel shafts. The inclusion of a side clamping screw allows for straightforward installation and rapid alignment, streamlining the setup process for users. Bosch Rexroth has meticulously designed this product with a reference edge to ensure precision in use. This feature makes it more cost-effective compared to creating custom bores or designs in-house. The product falls under the category of accessories for linear bushings and is part of Bosch Rexroth's linear guide offerings. The size specifications such as Size V, Productgroup ID, Size E, Size SW, and Size L are mentioned but not detailed here; these would typically provide additional information on dimensions and compatibility with other components within the linear motion system. The WBG-20F model's housing material is cast iron, known for its strength and wear resistance. In summary, the Bosch Rexroth SHAFT SUPPORT BLOC WBG-20F provides an efficient solution for those requiring reliable shaft support blocks that offer ease of installation, precise alignment capabilities, and affordability without compromising on quality or design integrity.
