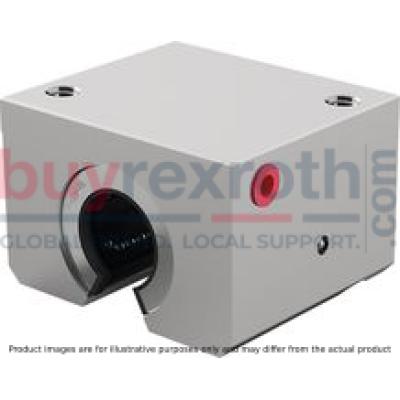

LINEAR-SET LSAO-B-12-DD
Manufacturer: Bosch Rexroth
Material #: R103781220
Model : LINEAR-SET LSAO-B-12-DD
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth LINEAR-SET LSAO-B-12-DD (R103781220) is a high-quality linear motion set designed for applications requiring precise and smooth linear movement. This set comprises an aluminum lightweight precision housing with a super linear bushing B that lacks a self-alignment feature, ensuring a stable and accurate operation. The shaft diameter is 'd,' and the product includes two external seals for protection against contaminants, enhancing the longevity of the system.
The LINEAR-SET LSAO-B-12-DD is clamped fastened, secured by a grooved taper pin, and is relubricatable, which allows for easy maintenance and extended service life. The product is characterized by its standard version design, which makes it suitable for various applications where high rigidity and support for long shafts are necessary. It has been thoroughly tested to ensure reliability, with tests showing total travel ranging from 10^4 m to 10^5 m without failure.
This linear set can handle dynamic load capacities and static load ratings effectively, as indicated in the specifications. It offers a breakaway force in size H and can achieve maximum permissible linear speeds (vmax), with speeds of up to 5 m/s possible under certain conditions. However, it's important to note that at these speeds, service life may be limited due to increased wear on plastic parts.
With its open format of linear bushings type O without self-alignment features, the LINEAR-SET LSAO-B-12-DD ensures reduced frictional drags even when not under radial load due to its integrated wiper seals on both sides. These characteristics depend on speed and lubrication conditions. The unit can operate within a permissible ambient temperature range from -20°C to +80°C while maintaining its performance.
Overall, this Bosch Rexroth Linear Set is ideal for users looking for robustness and precision in their linear motion requirements while also benefiting from the ease of maintenance provided by its design features.
$104.88 USD
More are expected on March 14, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as March 14, 2025 when ordered in
