LINEAR-SET LSA-B-50-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

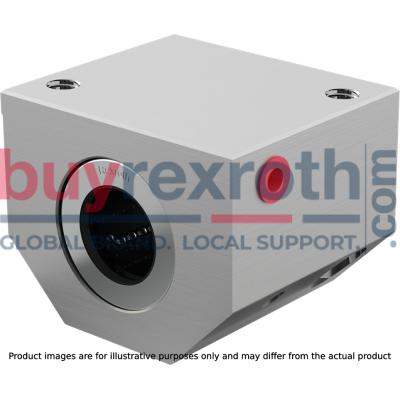

The Bosch Rexroth LINEAR-SET LSA-B-50-DD (R103585020) is an advanced linear motion system designed for precision applications. This linear set comprises a lightweight precision aluminum housing that incorporates a super linear bushing B, which lacks self-alignment features but ensures high accuracy and smooth motion. It includes external seals and is relubricatable, extending the service life of the set. With a fixed working bore diameter of 50 mm, the LINEAR-SET LSA-B-50-DD is equipped with integrated wiper seals on both sides to minimize frictional drag when not under radial load. The frictional forces vary based on speed and lubrication conditions. The product's static and dynamic load capacities are optimized for the main direction of loading; however, if the load direction varies, the capacities can be adjusted using specific factors provided in the product documentation. The linear set can handle maximum accelerations and operates within an ambient temperature range from -20°C to +80°C. It boasts a significant outer diameter size H, ensuring robustness for various applications. The breakaway force and maximum permissible linear speeds are outlined clearly, with speeds up to 5 m/s achievable under certain conditions—although this may impact the longevity of plastic components within the system. The LINEAR-SET LSA-B-50-DD has been tested thoroughly, demonstrating impressive total travel ranges without failure, highlighting its durability and reliability. With a weight of 0.7 kg, it offers an excellent balance between performance and ease of handling. Designed for straightforward installation in precise guiding tasks, this linear set by Bosch Rexroth represents a dependable solution for achieving accurate linear movement in various mechanical assemblies or automation systems where high precision is paramount.
