LINEAR-SET LSA-A-40-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

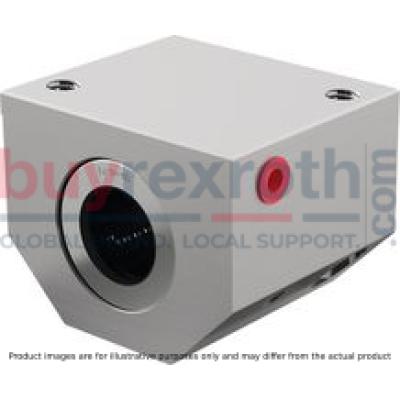

The Bosch Rexroth LINEAR-SET LSA-A-40-DD (R103564020) is a high-quality linear motion system designed for precise and smooth linear movement in various applications. This linear set comprises an aluminum housing with an integrated super linear bushing A, which is renowned for its self-aligning feature, providing reliable guidance and reducing installation time. The robust construction includes two external seals that protect internal components from contaminants and extend the system's service life. The product is characterized by its lightweight precision housing made of aluminum, contributing to the overall efficiency of machinery by reducing inertia. It is equipped with a standard shaft diameter 'd' that ensures compatibility with a range of setups. The R103564020 model is capable of withstanding dynamic loads, as indicated by its dynamic load capacity 'C', which should be adjusted based on the direction of loading using specific factors provided for different shaft diameters. With a maximum acceleration 'amax' and a permissible ambient temperature range from -20°C to +80°C, this linear set can perform reliably in diverse environmental conditions. It has been engineered to maintain performance up to a maximum permissible linear speed 'vmax', although higher speeds can result in increased wear on plastic components. The static load rating 'C' further highlights the system's ability to handle loads without deformation or damage when stationary. This model boasts an impressive service life, having undergone tests that demonstrate longevity over significant travel distances without failure. Additionally, the LINEAR-SET LSA-A-40-DD features friction force characteristics that are essential for understanding the resistance encountered during operation when not under radial load. Weighing only 0.7 kg, it provides an optimal balance between strength and weight, making it suitable for precision guides where easy installation and fixed working bore diameter are crucial requirements.
