LINEAR-SET LSA-A-25-DD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

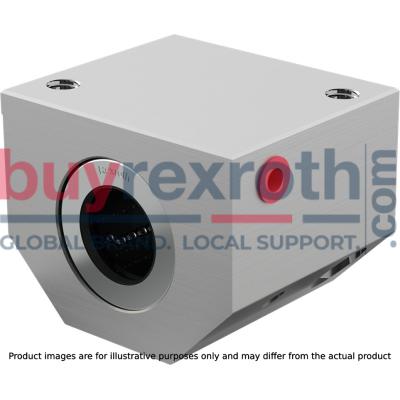

The Bosch Rexroth LINEAR-SET LSA-A-25-DD (R103562520) is a high-quality linear motion set designed for precision applications. This set includes a lightweight precision housing made of aluminum and features the super linear bushing A with a self-alignment capability, ensuring smooth and accurate motion. The inclusion of external seals provides protection against contaminants, while also making the system relubricatable for maintenance ease. With a shaft diameter labeled as 'd', this LINEAR-SET is constructed to deliver reliable performance under various conditions, including permissible ambient temperatures ranging from -20°C to 80°C. It boasts an impressive dynamic load capacity, which should be adjusted by specific factors if the loading direction deviates from the main direction. The maximum acceleration (amax) and maximum permissible linear speed (vmax) specifications ensure that the system can handle rapid movements without compromising stability or longevity. The product's outer diameter is categorized under Size H, which aligns with its breakaway force and maximum permissible linear speed parameters. The static load rating C provided for Size M indicates the system's ability to withstand forces without movement. Notably, this model can achieve speeds up to 5 m/s, although service life may be reduced due to increased wear on plastic components; however, tests have indicated a robust travel range without failure. Weighing in at just 0.5 kg, the LINEAR-SET LSA-A-25-DD is ideal for applications requiring precise guidance with an easy installation process. Its closed format ensures that all internal components are shielded from external elements, contributing to its durability and consistent operation over time. Designed for use with fixed working bore diameters, this linear set exemplifies Bosch Rexroth's commitment to engineering excellence in motion control solutions.
